Unlimited architecture

The system works on the basis of voice transmission VoIP providing unlimited number of voice and data channels. This makes possible to build any system architecture at the stage of design and implementation. In the future the system can be easily modified and expanded according to user requirements and needs.

Colour graphic display with a touch screen

Staff terminal and Client terminal are equipped with a 12″ colour display with a touch screen that ensures the intuitive operation via pictograms. The intuitive operating concept provides high comfort for staff and clients when using the terminals.

Remote administration and upgrade

The concept of system administration and maintenance is based on remote access via Internet. Remote administration allows to diagnose a defect or a problem with system operation, data maintenance, system configuration or reconfiguration. It is also possible to update or upgrade any system software.

Self-diagnostic functions

Reliability of system operation is ensured, among other things, by self-diagnostic functions that ensure system monitoring. In case of disconnected or defective units this condition is indicated. All errors and defects are transmitted in real time, with an emphasis on their immediate removal.

RFID registration

The staff registration in the system is standardly realized by the registration buttons. This registration is anonymous without the possibility to identify medical staff. To have a control over the system operation you can choose RFID tags and readers for staff registration. This functionality allows you to identify staff individually according to the assigned tags. Also identification of different levels of staff – physicians, nurses, support staff, etc. – is possible.

Code blue

In the system it is possible to activate „Blue code“, that indicates a patient requiring immediate resuscitation.

Data storage

Recording and storage of all activities in the system (client calls, call connections, registrations, alarms, etc.) with the option to view them on the display unit of the staff terminal or on a PC.

Protection against power failure

In the event of a power outage all data is protected and uninterruptible power supply keeps the system running until the central backup source is started.

Non-destructive connectors

To protect client´s units from mechanical damage, magnetic non-destructive connectors can be used for event of strain in any direction.

Displaying of data

Displaying of data on clients and movement of staff on a 12“ colour graphic display with a touch screen on staff terminal.

Integration with other systems

An option of integration with other systems used in health care facilities (fire alarm, security alarm, databases, etc.).

Staff presence monitoring

The staff registration on registration units allows to be constantly informed about movement of staff. This information is displayed in real time on the staff terminal and on units with display, and stored with an option of back viewing.

Unlimited architecture

The system works on the basis of voice transmission VoIP providing unlimited number of voice and data channels. This makes possible to build any system architecture at the stage of design and implementation. In the future the system can be easily modified and expanded according to user requirements and needs.

Colour graphic display with a touch screen

Staff terminal and Client terminal are equipped with a 12″ colour display with a touch screen that ensures the intuitive operation via pictograms. The intuitive operating concept provides high comfort for staff and clients when using the terminals.

Remote administration and upgrade

The concept of system administration and maintenance is based on remote access via Internet. Remote administration allows to diagnose a defect or a problem with system operation, data maintenance, system configuration or reconfiguration. It is also possible to update or upgrade any system software.

Self-diagnostic functions

Reliability of system operation is ensured, among other things, by self-diagnostic functions that ensure system monitoring. In case of disconnected or defective units this condition is indicated. All errors and defects are transmitted in real time, with an emphasis on their immediate removal.

RFID registration

The staff registration in the system is standardly realized by the registration buttons. This registration is anonymous without the possibility to identify medical staff. To have a control over the system operation you can choose RFID tags and readers for staff registration. This functionality allows you to identify staff individually according to the assigned tags. Also identification of different levels of staff – physicians, nurses, support staff, etc. – is possible.

Code blue

In the system it is possible to activate „Blue code“, that indicates a patient requiring immediate resuscitation.

Data storage

Recording and storage of all activities in the system (client calls, call connections, registrations, alarms, etc.) with the option to view them on the display unit of the staff terminal or on a PC.

Control of room equipment

An option to control TV, Venetian blinds or Internet radio by the client´s  units.

Protection against power failure

In the event of a power outage all data is protected and uninterruptible power supply keeps the system running until the central backup source is started.

Non-destructive connectors

To protect client´s units from mechanical damage, magnetic non-destructive connectors can be used for event of strain in any direction.

Voice navigation

The transmission of the caller ID through audio signal.

Displaying of data

Displaying of data on clients and movement of staff on a 12“ colour graphic display with a touch screen on staff terminal.

Integration with other systems

An option of integration with other systems used in health care facilities (fire alarm, security alarm, databases, etc.).

Staff presence monitoring

The staff registration on registration units allows to be constantly informed about movement of staff. This information is displayed in real time on the staff terminal and on units with display, and stored with an option of back viewing.

Integration of IP cameras

The system allows integration of IP cameras with image transfer to the staff terminal. This functionality is very often used in combination with the entrance communication units -replacement of the door videophone.

Colour graphic display with a touch screen

Master station is equipped with a colour display with a touch screen. The intuitive operating concept provides high comfort for staff when using the unit.

Transmission of calls to the place of staff registration

Transmission of all client´s calls to the master station and also to all places with staff registration.

Optical signalling above the doors of rooms

Individual calls and movement of staff are optically indicated  by lights located above the doors of rooms..

Transfer of voice messages

If the signalling units with transmitter are installed in the rooms, it is possible to realize one-way communication towards clients called “Central Message”.

Activation of medical alarm

In the system it is possible to activate alarm of the highest emergency called the “Medical Alarm”.

Comfortable programming of the system

Easy and intuitive configuration and programming of the system on master station.

Control of electric locks

The system allows control of the electric door locks. If an entrance unit is installed at the entrance, implementation of two-way talking connection with the entrance unit is possible.

Protection against power failure

In the event of a power outage all data is protected and uninterruptible power supply keeps the system running until the central backup source is started.

Decentralization of the system

The system can work as one unit, or it can be divided into subsystems just by pressing the button, that work completely autonomously.

Displaying of data

Displaying of data on clients and movement of staff on a colour graphic display with a touch screen on master station or on staff units with display.

Staff presence monitoring

The staff registration on registration units allows to be constantly informed about movement of staff. This information is displayed in real time on the master station and on units with display.

Integration with other systems

An option of integration with other systems used in health care facilities (fire alarm, security alarm, databases, etc.).

Signalling staff terminal IP 110230 TPS IP

It is an element in the wall or desktop version . Calls from beds are preferentially transmitted to this unit and if they are not settled by a predetermined time, they are further transmitted to the whole system. The unit makes possible to connect up 4 wards together.  It is equipped with a button of muted call.

Features:

• option to unit wards
• independent registration for every system
• interception of alarms from individual systems
• identification of the calling person on an alphanumeric display unit
• muted calls

Dimensions: 150 mm x 86 mm x 27 mm

Call cord IP 110150 VS IP

This is a switch with a vintage phone cord. It is connected to ZVST IP, ZU IP, ZLJK IP, ZLJR IP, ZUR IP, KJ IP or KJD IP via a connector.

The switch works just as a button which makes possible to send a request for voice communication.

Dimensions: 40 mm x 84 mm x 27 mm

Variants: VSB IP – Call cord for ZVSB 868 IP (110153)

Socket for call cord with push button IP 110165 ZVST IP

It is used for connection of Emergency call cord IP.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
ZVSB IP (110166) – Socket for call cord wireless 868 IP,
ZVSB IP (110167) – Socket for call cord wireless 869 S IP

Call and cancel button IP 110820 VRT IP

This element is installed in bathrooms and toilets which are part of the room. It is used when it is required to cancel the emergency call at the place where the call was activated.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord with push button IP 110411 TTNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord IP 110410 TANV IP

This element is similar to Emergency call push button IP. It is usually placed in bathrooms above bathtubs and in showers at least 2,25 m above the floor.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
TANVB IP (110412) Еmergency call pull cord wireless 868 IP,
TANVB IP (110413) Еmergency call pull cord wireless 869 S IP

Emergency call push button IP 110400 TNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Socket for pneumatic switch IP 110430 ZPS IP

It is used  for connection of Pneumatic switch 110420 (the element consists of air ballon and a tube for diaphragm switch control in extremely humid environment or in spa / rehabilitation bathtubs. The balloon can float in water).

In connection with Signalling unit IP or Communication unit IP  it enables to send  emergency call to the system.

It is ususally installed above or next to a bathtub, or wherever else needed.

Dimensions: 86 mm x 86 mm x 27 mm

Lamp IP 110441 SV IP

In connection with the attached element optically signalizes status of a particular place.

Dimensions: 86 mm x 86 mm x 48 mm

Direction lamp with buzzer IP 110451 SVS IP

It is used for easier orientation of staff in the labyrinthine buildings and spaces, for optical indication of calls.

Dimensions : 86 mm x 86 mm x 48 mm

Signalling unit IP 110250 SIJ IP

This element is used in bathrooms and toilets (if these are not a part of a bed room) or in places of temporary staff presence to which acoustic signals from the system need to be redirected.

Features:

• emergency call initialization
• staff registration
• alarm initialization
• connection of any number of emergency call push buttons and pull cords
• acoustic signals redirection if staff is registered

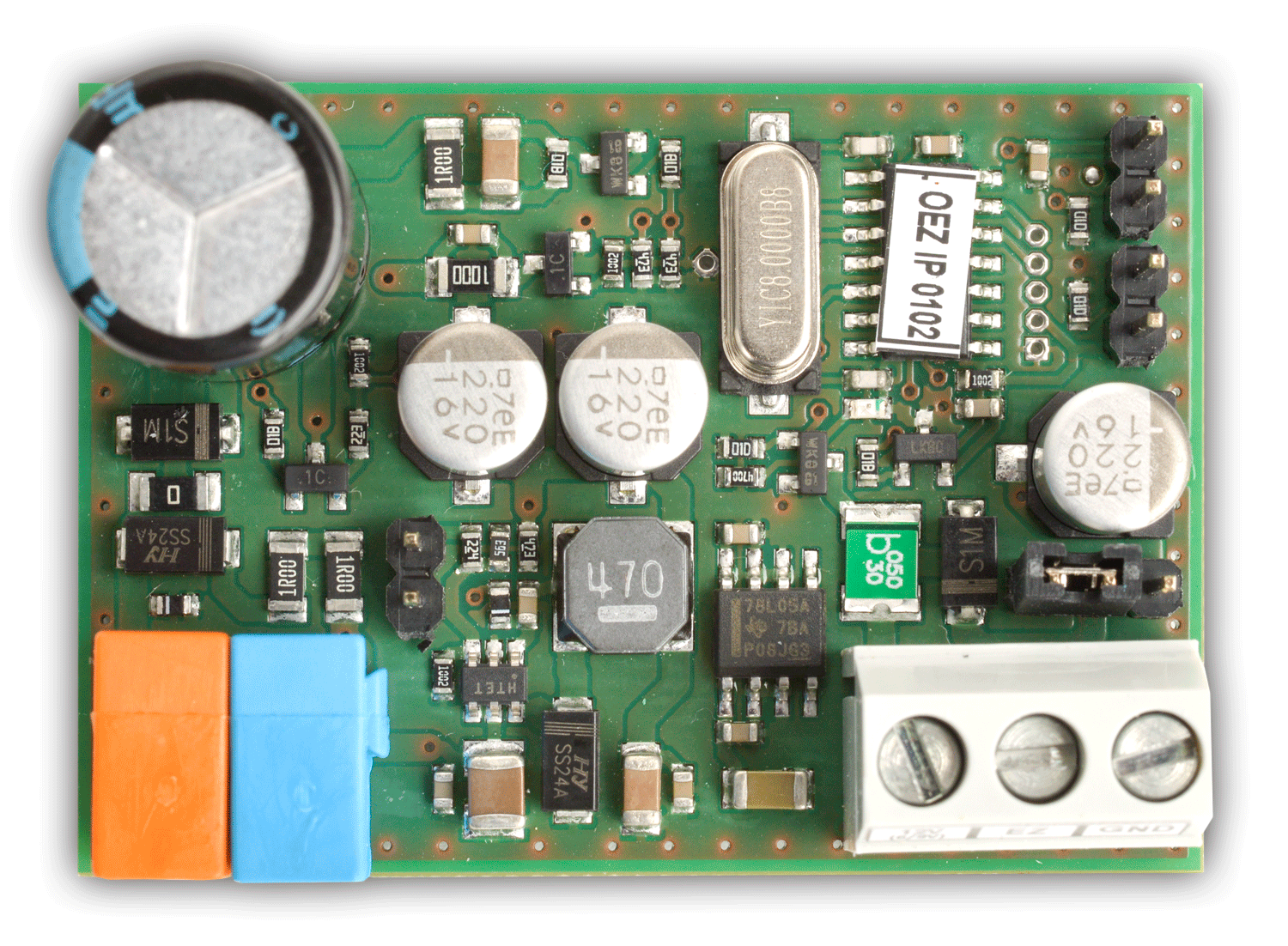

Input SBUS module IP (MV SBUS IP – 110480) provides connection between external devices (fire alarm system, etc.) and
MDCV 04 IP system. It is used wherever you need to connect an external device to switch on potential-free contact .

Socket for external device (ZEZ IP – 110481) is fully analogous to the Input SBUS module IP, it is equipped with a RJ11 connector.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
SIJ RFID IP (110250) – Signalling unit with RFID IP,
SIJB IP (110251) – Signalling unit wireless 868 IP,
SIJB RFID IP (110251) – Signalling unit wireless 868 with RFID IP,
SIJB IP (110252) – Signalling unit wireless 869 S IP,
SIJB RFID IP (110252) – Signalling unit wireless 869 S with RFID IP

Signalling unit with display IP 110260 SIJD IP

This element is identical to Signalling unit but features in addition an alphanumeric display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 86 mm x 150 mm x 27 mm

Models:
SIJD RFID IP  (110260) – Signalling unit with display and RFID IP,
SIJDB IP (110261) – Signalling unit with display wireless 868 IP,
SIJDB RFID IP (110261) – Signalling unit with display wireless 868 with RFID IP,
SIJDB RFID IP (110262) – Signalling unit with display wireless 869 S with RFID IP

Wireless push button 868 IP 110361 BTU IP

The element is used for wireless emergency calls. It comes in handy especially if the patient can freely move about the room but he or she has to be able to call help at any time, for example in case of a seizure.

Dimensions: 55 mm x 45 mm x 15 mm

Models:

BTU IP (110361) – Wireless push button 868 IP on the neck,
BTU IP (110361) – Wireless push button 868 IP with clip,
BTU IP (110362) – Wireless push button 869 S IP,
BTU IP (110362) – Wireless push button 869 S IP on the neck,
BTU IP (110362) – Wireless push button 869 S IP with clip,
BTUM IP (110363) – Wireless push button 869 S IP
BTUM IP (110363) – Wireless push button 869 S multi IP on the neck,
BTUM IP (110363) – Wireless push button 869 S multi IP with clip
BTUM IP (110363) – Wireless push button 869 S multi IP

Call cord bracket for ZLJ 109500 ZVSZ

This element is used along with Bedside unit bracket with connector IP, when instead of a bedside unit only call cord is used at the client’s bed.

Dimensions: 55 mm x 95 mm x 40 mm

Ethernet socket IP 110030 ZE IP

The Ethernet socket is used as an interface for connecting of the Staff terminal IP Acrios (TP IP), Signalling staff terminal (TPS IP) desktop variant, Staff unit with display (SJD IP) desktop variant, to the system bus.

Dimensions: 86 mm x 86 mm x 27 mm

Management centre VoIP Acrios 110041 SSV IP

It is the central element for control and administration of the system.

Dimensions: 119 mm x 245 mm x 245 mm

Switch 8 ports ( SW8 – 110660) is a part of delivery, for connection of  each branch of the system wiring.

Uninterruptible power supply for SSV  (ZZ – 110690) provides emergency power to the server when the input power source or mains power fails, and it also protects the server from overvoltage.

Data rack TRITON 19″ 6U (DR6 – 110790) for mounting multiple electronic equipment modules – server SSV IP, switch devices (data switch is a part of server supply), size of rack  6U with removable side panels, IP30 protection.

Analog/VoiP gateway IP (AVB IP – 110810) ensures the connection of the system with public telephone networks.

GSM gateway SMS IP Acrios (GSM SMS IP – 110852) ensures the connection of the MDC V04 IP system with the GSM network.

Detection gate module IP (MDB IP – 110861) monitors persons leaving the given sector or building without permission. Antenna for detection gate module IP (AMDB IP – 110862).

Pager base station (PU – 110670), Text pager (PT – 110680), Control panel of pager IP  (OPP IP – 110675) – these elements ensure signal transfer from the MDC V04 IP system. The information is transmitted in text form to the Text pager.

Switch module ZPT IP 110640 SM IP

Installation element for the construction of the system Ethernet network.

Dimensions: 115 mm x 70mm x 15 mm

Power supply unit 350W 24V 110091 N350 IP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker.

Dimensions : 305 mm x 200 mm x 95 mm

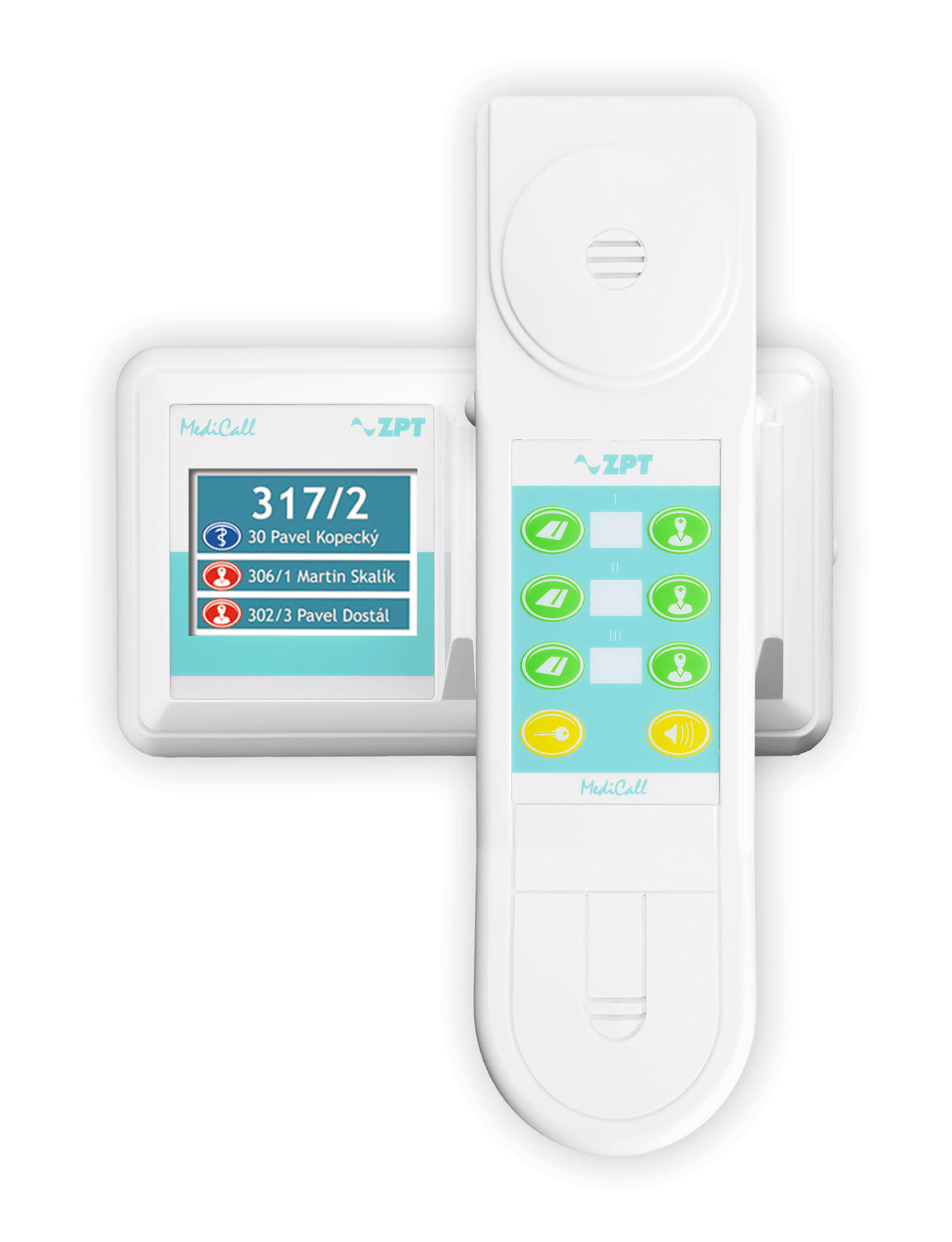

Staff terminal IP Acrios 110013 TP IP

This staff element provides control, monitoring, configuration and administration of the whole system. It is connected to the system through the Ethernet socket (ZE IP).

Features:

• acoustic and optical signalization of individual calls
• calling address visualization
• client’s data visualization, staff movement visualization
• electrical door lock control
• decentralization of the system into the smaller logical units
• user friendly via touch screen
• reception of client’s calls and alarms and an option of its cancellation
• choice of diverting programmes
• client´s names editing
• viewing of cameras installed in the system
• choice of the client according to the room or the name and realization of the connection with the client
• update of staff terminal IP via USB flash drive or from the Internet
• staff registration on TP RFID IP using RFID tag
• loud listening to the diverting programmes on TP IP
• the possibility of implementation of any number of TP IP within the system

Dimensions: 360 mm x 250 mm x 120 mm

Models:
TP N IP (110014) – Wall staff terminal IP Acrios – wall mounting,
TP RFID IP (110013) – Staff terminal with RFID IP Acrios,
TP RFID N (110014) – Wall staff terminal with RFID IP Acrios – wall mounting

For the TP IP version with RFID module, RFID TAG (110500, 110501) is used for staff registration

Possibility of amplifying the power supply by Power adapter TP (ATP 110871) via the ZE IP element.

Client terminal IP 110020 TK IP

Client terminal:

·        sending a request for communication with a nurse or support staff
·        loud communication with a nurse and support staff
·        loud playback of announcements
·        browsing web pages
·        listening to an entertainment programmes
·        watching TV programmes (media streamer connected)
·        connection of headphones
·        control of room equipment – lighting and  Venetian blinds
·        integration of RFID readers for staff registration and identification

Nurse mode (after registration of presence):

• acoustic signalling of clients or staff calls with identification of the calling place on the display unit
• an option to establish talking connection
• an option of undirected calls to physician or nurse
• an option of direct call to any other participant
• an overview of staff movement

Signalling staff terminal IP 110230 TPS IP

It is an element in the wall or desktop version . Calls from beds are preferentially transmitted to this unit and if they are not settled by a predetermined time, they are further transmitted to the whole system. The unit makes possible to connect up 4 wards together.  It is equipped with a button of muted call.

Features:

• option to unit wards
• independent registration for every system
• interception of alarms from individual systems
• identification of the calling person on an alphanumeric display unit
• muted calls

Dimensions: 150 mm x 86 mm x 27 mm

Call cord bracket 102320 ZVS

• used to suspend the emergency call cord

Dimensions : 55 mm x 95 mm x 40 mm

Staff unit with display IP 110331 SJD IP

This element in wall-mounted design is used for devolution of the system. It is useful for example in the intensive care units or in rooms with a constant nurse supervision. Calls from these beds are preferentially transmitted only to this unit and if they are not settled by a predetermined time, they are further transmitted to the whole system.

Functional options of the element:

• variants for a doctor or for a nurse (configuration via the staff terminal)
• connection to up to several stand-alone systems
• separate registration for each system
• sending request for voice communication to each system
• alarm receiving from each system with the option to start voice communication
• voice connection with all communication elements within the system or combined operation of systems
• control of entrance door electrical lock
• identification of incoming calls on display

Dimensions:
54mm x 200mm x 28mm (phone receiver)
150 mm x 86 mm x 45 mm

Communication unit IP 110310 KJ IP

Communication unit is the central unit of a bed room associating control elements of clients and staff.

Features:

• selection of nurse registration (push-button, tag)
• an option to control the electric lock of the entrance door
• transmitting requests for establishing a connection with the nurse
• loud communication connection with staff
• an option to connect the telephone handset for a discrete connection via the connector of the communication unit (version with connector)
• connection of call cord via the connector of the communication unit (version with connector)
• listening to diverting programmes with volume control
• acceptance of telephone calls from public telephone network
• reception of calls from systems in the combined operation with the option of mutual communication
• nurse presence registration
• staff alarm initialization
• connection of emergency call push-buttons and pull cords via SBUS
• loud playback of announcements from the staff terminal. The announcements can be directed to a selected room or to all rooms in the ward
• acoustic signalization of incoming calls from other points in the system or in other systems (if they are combined)
• control of the optical signalling lamp
• an option to implement internal wireless receiver module

Dimensions: 130 mm x 150 mm x 27 mm

Models:
KJ RFID IP (110310) Communication unit with RFID IP,
KJK IP (110311) Communication unit with connector IP,
KJB IP (110312) Communication unit wireless 868 IP,
KJB RFID IP (110312) Communication unit wireless 868 with RFID IP,
KJKB IP (110313) Communication unit with connector wireless 868 IP,
KJKB IP (110313) Communication unit with connector wireless 868 with RFID IP,
KJB IP (110314) Communication unit wireless 869 S IP,
KJB RFID IP (110314) Communication unit wireless 869 S with RFID IP

Communication unit with display IP 110320 KJD IP

In comparison to the Communication unit IP the element is expanded with an alphanumeric display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 130 mm x 150 mm x 27 mm

Models:
KJD RFID IP (110320) Communication unit with display and RFID IP,
KJDB IP (110321) Communication unit with display wireless 868 IP,
KJDB RFID IP (110321) Communication unit with display wireless 868 with RFID IP,
KJDB IP (110322) Communication unit with display wireless 869 S IP,
KJDB RFID IP (110322) Communication unit with display wireless 869 S with RFID IP

Communication unit with touch screen display IP 110201 KJDD IP

In comparison to the Communication unit IP the element is expanded with an touch screen display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 130 mm x 150 mm x 27 mm

Models:
KJDD RFID IP (110201) – Communication unit with touch screen display and RFID IP

Entrance communication unit IP 110281 VKJ IP

This element is installed next to the ward entrance door and is intended mainly for visitors.

Features:

• sending a request for communication with staff members
• voice communication

Dimensions: 130 mm x 150 mm x 27 mm

Models:
VKJ RFID IP (110281) – Entrance communication unit with RFID IP

LJ bracket with loudspeaker IP 110125 ZLJR IP

The unit is equipped with a loudspeaker for one-way loud call connection and with a connector for connection of participant´s units.

Functional options of the element:

• one-way loud call connection
• connection of bedside unit for discrete (phone) call connection
• connection of call cord with microphone for loud call connection
• connection of call cord
• loud listening to entertainment programs
• loud reproduction of messages from staff terminal and staff unit with display
• detection of raised and hanged-up handset (bedside unit)

Dimensions: 150 mm x 86 mm x 45 mm

Variant: ZLJR DIN IP – LJ bracket  with loudspeaker DIN IP (110124)

User´s bracket unit with loudspeaker IP 110142 ZUR IP

Models:
ZUR RFID IP (110142) – User´s bracket unit with loudspeaker and RFID IP,
ZURB IP (110143) – User´s bracket unit with loudspeaker wireless 868 IP

Bedside unit with display IP 110100 LJD IP

This element in the shape of a telephone receiver is usually placed next to a patient’s or client’s bed. It can be connected to the system in two ways: as a standard by a connector built in Bedside unit bracket with connector IP or via a connector in Extension user´s socket IP if the system is a part of bed head units. In the later case, Bedside unit bracket without connector IP is also a part of the delivery.

The relay module provides connection between controlling device and light or other equipment.

Using LJD IP, it is possible to control the lighting on bedside unit or in the room, Relay module for lighting IP (110115) provides connection between the controlling device and light.

From the loudspeaker of LJD IP, LJO IP or LJ IP it is possible to listen to TV. For transferring sound from TV to the MDC V04 IP system TV interface IP (110160) is used.

Features:

• sending a request and making a call
• listening to two entertainment programmes of choice
• volume control for entertainment programmes
• display with date, time, entertainment programme
• making phonecalls
• acceptance of incoming phonecalls from ATE

Dimensions:
54 mm x 200 mm x 25 mm (LJD IP)
86 mm x 150 mm x 45 mm (ZLJK IP)

Bedside unit IP 110116 LJ IP

This element in the shape of a telephone receiver is usually placed next to a patient’s or client’s bed. It can be connected to the system in two ways: as a standard by a connector built in Bedside unit bracket with connector IP or via a connector in Extension user´s socket IP if the system is a part of bed head units. In the later case, Bedside unit bracket without connector IP is also a part of the delivery.

Features:

• sending a request and making a call
• listening to two entertainment programmes of choice
• volume control for entertainment programmes
• making phonecalls
• acceptance of incoming phonecalls from ATE

Dimensions:
54 mm x 200 mm x 25 mm (LJ IP)
86mm x 150mm x 45mm (ZLJK IP)

Models: LJO IP (110117) – Bedside unit with lighting control IP

LJ bracket with connector IP 110123 ZLJK IP

The bracket is used for connection of the Bedside unit IP (possibility of hanging-up) or Call cord IP via a connetor.

Dimensions: 86 mm x 150 mm x 45 mm

Models:
ZLJKE IP (110121) – LJ bracket with ethernet IP,

User's socket IP 110190 ZU IP

It is used for connection of Emergency call cord IP,  or on a head bed unit for connection of Bedside unit IP.

Dimensions: 86 mm x 86 mm x 27 mm

Models: ZUO IP (110191) – User´s socket with lighting control IP

Call cord with microphone IP 110152 VSM IP

This is a switch with a vintage phone cord and with integrated microphone. It is connected via a connector to ZLJR IP  or KJK IP.
The device allows to send a call and establish voice communication with staff using the loudspeaker on the connected units.

Dimensions: 40x84x27 mm + cord

Call cord IP 110150 VS IP

This is a switch with a vintage phone cord. It is connected to ZVST IP, ZU IP, ZLJK IP, ZLJR IP, ZUR IP, KJ IP or KJD IP via a connector.

The switch works just as a button which makes possible to send a request for voice communication.

Dimensions: 40 mm x 84 mm x 27 mm

Variants: VSB IP – Call cord for ZVSB 868 IP (110153)

Socket for call cord with push button IP 110165 ZVST IP

It is used for connection of Emergency call cord IP.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
ZVSB IP (110166) – Socket for call cord wireless 868 IP,
ZVSB IP (110167) – Socket for call cord wireless 869 S IP

Call and cancel button IP 110820 VRT IP

This element is installed in bathrooms and toilets which are part of the room. It is used when it is required to cancel the emergency call at the place where the call was activated.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord with push button IP 110411 TTNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord IP 110410 TANV IP

This element is similar to Emergency call push button IP. It is usually placed in bathrooms above bathtubs and in showers at least 2,25 m above the floor.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
TANVB IP (110412) Еmergency call pull cord wireless 868 IP,
TANVB IP (110413) Еmergency call pull cord wireless 869 S IP

Emergency call push button IP 110400 TNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Socket for pneumatic switch IP 110430 ZPS IP

It is used  for connection of Pneumatic switch 110420 (the element consists of air ballon and a tube for diaphragm switch control in extremely humid environment or in spa / rehabilitation bathtubs. The balloon can float in water).

In connection with Signalling unit IP or Communication unit IP  it enables to send  emergency call to the system.

It is ususally installed above or next to a bathtub, or wherever else needed.

Dimensions: 86 mm x 86 mm x 27 mm

Lamp IP 110441 SV IP

In connection with the attached element optically signalizes status of a particular place.

Dimensions: 86 mm x 86 mm x 48 mm

Direction lamp with buzzer IP 110451 SVS IP

It is used for easier orientation of staff in the labyrinthine buildings and spaces, for optical indication of calls.

Dimensions : 86 mm x 86 mm x 48 mm

Interface for information monitor IP 110540 IIM IP

A source of video signal for Information monitor IP.

Dimensions: 150 mm x 86 mm x 27 mm

Information monitor 32" 110550 IM

It is an 32″ information monitor which is usually installed in the corridor. The monitor displays information about individual calls – address of the place of call activation, type of call, caller´s name, medical alarm,  presence, date/time.

Signalling unit IP 110250 SIJ IP

This element is used in bathrooms and toilets (if these are not a part of a bed room) or in places of temporary staff presence to which acoustic signals from the system need to be redirected.

Features:

• emergency call initialization
• staff registration
• alarm initialization
• connection of any number of emergency call push buttons and pull cords
• acoustic signals redirection if staff is registered

Input SBUS module IP (MV SBUS IP – 110480) provides connection between external devices (fire alarm system, etc.) and
MDCV 04 IP system. It is used wherever you need to connect an external device to switch on potential-free contact .

Socket for external device (ZEZ IP – 110481) is fully analogous to the Input SBUS module IP, it is equipped with a RJ11 connector.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
SIJ RFID IP (110250) – Signalling unit with RFID IP,
SIJB IP (110251) – Signalling unit wireless 868 IP,
SIJB RFID IP (110251) – Signalling unit wireless 868 with RFID IP,
SIJB IP (110252) – Signalling unit wireless 869 S IP,
SIJB RFID IP (110252) – Signalling unit wireless 869 S with RFID IP

Signalling unit with display IP 110260 SIJD IP

This element is identical to Signalling unit but features in addition an alphanumeric display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 86 mm x 150 mm x 27 mm

Models:
SIJD RFID IP  (110260) – Signalling unit with display and RFID IP,
SIJDB IP (110261) – Signalling unit with display wireless 868 IP,
SIJDB RFID IP (110261) – Signalling unit with display wireless 868 with RFID IP,
SIJDB RFID IP (110262) – Signalling unit with display wireless 869 S with RFID IP

Wireless push button 868 IP 110361 BTU IP

The element is used for wireless emergency calls. It comes in handy especially if the patient can freely move about the room but he or she has to be able to call help at any time, for example in case of a seizure.

Dimensions: 55 mm x 45 mm x 15 mm

Models:

BTU IP (110361) – Wireless push button 868 IP on the neck,
BTU IP (110361) – Wireless push button 868 IP with clip,
BTU IP (110362) – Wireless push button 869 S IP,
BTU IP (110362) – Wireless push button 869 S IP on the neck,
BTU IP (110362) – Wireless push button 869 S IP with clip,
BTUM IP (110363) – Wireless push button 869 S IP
BTUM IP (110363) – Wireless push button 869 S multi IP on the neck,
BTUM IP (110363) – Wireless push button 869 S multi IP with clip
BTUM IP (110363) – Wireless push button 869 S multi IP

LJ bracket without connector IP 110131 ZLJ IP

This element is used to hang up Bedside unit IP if the system cables terminate in bed head units.

Dimensions: 86 mm x 150 mm x 45 mm

Call cord bracket for ZLJ 109500 ZVSZ

This element is used along with Bedside unit bracket with connector IP, when instead of a bedside unit only call cord is used at the client’s bed.

Dimensions: 55 mm x 95 mm x 40 mm

Ethernet socket IP 110030 ZE IP

The Ethernet socket is used as an interface for connecting of the Staff terminal IP Acrios (TP IP), Signalling staff terminal (TPS IP) desktop variant, Staff unit with display (SJD IP) desktop variant, to the system bus.

Dimensions: 86 mm x 86 mm x 27 mm

Outdoor entrance communication unit 2 IP Acrios 110294 VKJV2 IP

The element is used in places that are exposed to weather influences (entrance to buildings) and it is used especially by visitors. It is provided as a whole including its metal casing.

Features:

• sending a request for communication with staff
• voice communication

Dimensions: 135 mm x 225 mm x 75 mm

Models:
VKJV4 IP (110293) Outdoor entrance communication unit 4 IP Acrios

The unit can be expanded with CRVKJV IP (110561) – RFID Reader VKJV IP – for opening EZ
by RFID tags from the place next to VKJV2 IP.

VKJV adaptor IP Acrios 110303 AVKJV IP

This electronic device along with Outdoor entrance communication unit 2 IP Acrios makes up one functional whole. It is never installed outdoor but always near the outdoor entrance communication unit.

It does not contain any controls.

Dimensions: 150 mm x 86 mm x 27 mm

Electric lock controller IP 110470 OEZ IP

The element is used to create a voltage to control the electric lock. Installation in the interior only.

Functional options of the element:

• an option to set up input voltage of the electric lock 6 V/9 V/12 V
• set up for used type of electric lock (inactiv closed/open)
• set up AC/DC

Electric lock is not a part of the MediCall system supply.

Dimensions: 46 mm x 26 mm x 30 mm

RFID reader IP  (CRFID IP – 110560) – electric door lock control by RFID tag.

Indoor camera set IP 110650 SK IN IP

IP camera is used for video transmission from the requested places in the object to the Staff terminal IP Acrios, for example entrance door to the ward or building. IP camera is usually used together with Entrance communication unit IP.

Dimensions: depending upon the type

Models:
SK OUT IP (110651) – Outdoor camera set IP
SK D IP (110652) – Indoor camera set with detection IP

Wireless staff unit IP 110600 BSJ IP

The wireless staff unit consists of a base station and a handset.

Base station is a part of the set, which ensures communication with the wireless handset, communication over the local area network (LAN) provided with the router (switch), and making phone calls using ATE. The range of gigaset base station is limited, up to 50 m indoors, the range is reduced when ECO mode is activated. Power supply is realized from the backbone line of the MediCall system by connection via power adapter, which is part of the set.

Handset is a receiving apparatus, providing connection with the base station. Handset charger is a part of the set.The wireless staff unit is a standart mobile phone, which is connected to the system via the base station. It can be used in staff´s rooms, or in the place of staff terminal installation. The element enables staff members movements within the range of the mobile phone  while maintaining the availability of immediate care and help.

Repeater for BSJ IP (110601)  is used for increasing the range of Gigaset Base station and at the same time it extends the reception range of the handsets. Within such an extended area it is possible to use all the features as on the base station.

Features:

• variants for a doctor or for a nurse
• connection to several systems
• separate registration for each system
• sending request for talking connection to each system
• alarm receiving from each system with the option to start voice communication
• voice connection with all communication elements within the system or combined operation of systems
• simultaneous direct connection to ATE

Management centre VoIP Acrios 110041 SSV IP

It is the central element for control and administration of the system.

Dimensions: 119 mm x 245 mm x 245 mm

Switch 8 ports ( SW8 – 110660) is a part of delivery, for connection of  each branch of the system wiring.

Uninterruptible power supply for SSV  (ZZ – 110690) provides emergency power to the server when the input power source or mains power fails, and it also protects the server from overvoltage.

Data rack TRITON 19″ 6U (DR6 – 110790) for mounting multiple electronic equipment modules – server SSV IP, switch devices (data switch is a part of server supply), size of rack  6U with removable side panels, IP30 protection.

Analog/VoiP gateway IP (AVB IP – 110810) ensures the connection of the system with public telephone networks.

GSM gateway SMS IP Acrios (GSM SMS IP – 110852) ensures the connection of the MDC V04 IP system with the GSM network.

Detection gate module IP (MDB IP – 110861) monitors persons leaving the given sector or building without permission. Antenna for detection gate module IP (AMDB IP – 110862).

Pager base station (PU – 110670), Text pager (PT – 110680), Control panel of pager IP  (OPP IP – 110675) – these elements ensure signal transfer from the MDC V04 IP system. The information is transmitted in text form to the Text pager.

Audio program module IP 110520 MAP IP

It is a source of entertainment program (2 FM channels), which is transmitted to the system.

Dimensions: 150 mm x 86 mm x 27 mm

Switch module ZPT IP 110640 SM IP

Installation element for the construction of the system Ethernet network.

Dimensions: 115 mm x 70mm x 15 mm

Power supply unit 350W 24V 110091 N350 IP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker.

Dimensions : 305 mm x 200 mm x 95 mm

Exhibition MEDBALTICA 2022

MEDBALTICA 2022
1-3 December 2022
Ķipsalas str. 8-153,
LV-1048, Riga, Latvia
Hall 2, Stand C22-D21
https://www.bt1.lv/medbaltica

Exhibition Medica 2022

Medica 2022

14-17 November 2022
Messe Düsseldorf, Germany
Hall 15, Stand No. 15K32

Exhibition Tbilisi Health Forum 2019

Tbilisi Health Forum 2019 8-10 November, 2019 Expo Georgia 118 Tsereteli Ave., 0119 Tbilisi, Georgia Hall 11, stand 16

Tbilisi Health Forum 2019
8-10 November, 2019
Expo Georgia
118 Tsereteli Ave., 0119 Tbilisi, Georgia
Hall 11, stand 16

Exhibition TIHE 2023

TIHE 2023 13-15 April 2022 Pavilion No.2, Stand D100 Uzexpocentre NEC, Tashkent, Uzbekistan www.tihe.uz

TIHE 2023
13-15 April 2022
Pavilion No.2, Stand D100
Uzexpocentre NEC, Tashkent, Uzbekistan
www.tihe.uz

Exhibition Arab Health 2023

ARAB HEALTH 2023
30 Jan – 2 Feb 2023
Dubai International Convention & Exhibition Centre, UAE
Hall Z1, stand Z1.F10 & Z1.F01

Exhibition Public Health 2019

Exhibition Public Health 2019

Exhibition Public Health 2019

1-3 October, 2019
IEC – KYIV
Ukraine
Hall 3A, stand C1-2

Wireless push button 109540 BT

• used for wireless initialization of client‘s call
• the element is installed as a peripheral part of directed elements

Dimensions : 40 mm x 84 mm x 26 mm

Wall-mounted master station 102301 HU-N

• simple and well arranged operation
• acoustic and optical signalling of individual calls
• display the address of the calling place on the display unit
• system programming and configuration
• acceptance and cancellation of client‘s call
• acceptance and cancellation of alarm
• transmission of voice messages into the system (with transmitter only)
• colour graphics display
• touch screen

Dimensions : 86 mm x 150 mm x 26 mm

Desktop master station 102361 HU-S

• simple and well arranged operation
• acoustic and optical signalling of individual calls
• display the address of the calling place on the display unit
• system programming and configuration
• acceptance and cancellation of client‘s call
• acceptance and cancellation of alarm
• transmission of voice messages into the system (with transmitter only)
• colour graphics display
• touch screen

Dimensions : 86 mm x 150 mm x 64 mm

Distribution socket + cable 102380 ZR

• provide connection of Master station by cable (2m)
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Sectional station 102331 SU-N

• acoustic and optical signalling of individual calls
• display the address of the calling place on the display unit
• decentralization of the system into a pre-programmed subsystem
• simple and well arranged operation
• acceptance and cancellation of client‘s call
• acceptance and cancellation of alarm
• transmission of voice messages to the system
• colour graphics display
• touch screen

Dimensions : 86 mm x 150 mm x 26 mm

Signalling unit 109235 SIJ

• option of staff registration
• option to connect arbitrary number of extension user´s sockets, push buttons and pull cords for emergency calls
• option to transmit client‘s call
• option to transmit alarm
• transmission of acoustic signals in case of staff registration

Dimensions : 86 mm x 86 mm x 26 mm

Signalling unit with transmitter 102340 SIJ-O

• option of staff registration
• option to connect arbitrary number of extension user´s sockets, push-buttons and pull cords for emergency calls
• option to transmit client‘s call
• option to transmit alarm
• transmission of acoustic signals in case of staff registration
• transmission of central messages from the master or sectional station

Dimensions : 86 mm x 150 mm x  26 mm

Signalling unit with display 109462 SIJ-D

• display the address of the calling place on the display unit
• transmission of acoustic signals in case of staff registration
• option to connect arbitrary number of extension user´s sockets, push buttons and pull cords for emergency calls
• option of staff registration
• option to transmit alarm
• option to transmit client‘s call

Dimensions : 86 mm x 150 mm x  26 mm

Entrance unit 102350 VJ

• option to send a request for talking connection with staff
• implementation of two-way talking connection with master or sectional station
• full-bodied substitute for the so-called electric porter including the control of the relevant electric lock

Dimensions : 86 mm x 150 mm x 26 mm

Sound detector 09242 ZS

• transmission of optical and acoustic signal towards staff, if the noise level in the room reaches / exceeds the set value
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Extension user´s socket 109202 ZU

• option to connect emergency call cord
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Extension user´s socket with push button 109532 ZU-T

• option to transmit client‘s call
• option to connect  emergency call cord
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Emergency call cord 109172 VS-VN

• option to transmit client‘s call
• connected into the extension user´s socket or extension user´s socket with push button

Dimensions : 40 mm x 84 mm x 26 mm

Emergency call push button 109352 TNV

• option to transmit client‘s call
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Emergency call pull cord 109362 TANV

• option to transmit client‘s call
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Socket of pneumatic switch of emergency call 109382 ZPS

• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Pneumatic switch of emergency call 109370 PS

• option to transmit client‘s call

Lamp 109390 SV

• optical signalling as per the type of callling

Dimensions : 86 mm x 86 mm x 48 mm

Direction lamp 109490 SV-S

It is used for easier orientation of staff in the labyrinthine buildings and spaces, for optical indication of calls.

Dimensions : 86 mm x 86 mm x 48 mm

Call cord bracket 102320 ZVS

• used to suspend the emergency call cord

Dimensions : 55 mm x 95 mm x 40 mm

Power supply unit 109091 NAP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. This power supply unit type is only used if there are up to 100 address elements in the system. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker. Maximal input is 250VA.

Dimensions : 350 mm x 300 mm x 95 mm

Power supply unit 102260 NAP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. This power supply unit type is only used if there are less to 100 address elements in the system. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker. Maximal input is 100VA.

Dimensions : 230 mm x 200 mm x 95 mm

Wall-mounted master station 102301 HU-N

• simple and well arranged operation
• acoustic and optical signalling of individual calls
• display the address of the calling place on the display unit
• system programming and configuration
• acceptance and cancellation of client‘s call
• acceptance and cancellation of alarm
• transmission of voice messages into the system (with transmitter only)
• colour graphics display
• touch screen

Dimensions : 86 mm x 150 mm x 26 mm

Desktop master station 102361 HU-S

• simple and well arranged operation
• acoustic and optical signalling of individual calls
• display the address of the calling place on the display unit
• system programming and configuration
• acceptance and cancellation of client‘s call
• acceptance and cancellation of alarm
• transmission of voice messages into the system (with transmitter only)
• colour graphics display
• touch screen

Dimensions : 86 mm x 150 mm x 64 mm

Distribution socket + cable 102380 ZR

• provide connection of Master station by cable (2m)
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Sectional station 102331 SU-N

• acoustic and optical signalling of individual calls
• display the address of the calling place on the display unit
• decentralization of the system into a pre-programmed subsystem
• simple and well arranged operation
• acceptance and cancellation of client‘s call
• acceptance and cancellation of alarm
• transmission of voice messages to the system
• colour graphics display
• touch screen

Dimensions : 86 mm x 150 mm x 26 mm

Signalling unit 109235 SIJ

• option of staff registration
• option to connect arbitrary number of extension user´s sockets, push buttons and pull cords for emergency calls
• option to transmit client‘s call
• option to transmit alarm
• transmission of acoustic signals in case of staff registration

Dimensions : 86 mm x 86 mm x 26 mm

Signalling unit with transmitter 102340 SIJ-O

• option of staff registration
• option to connect arbitrary number of extension user´s sockets, push-buttons and pull cords for emergency calls
• option to transmit client‘s call
• option to transmit alarm
• transmission of acoustic signals in case of staff registration
• transmission of central messages from the master or sectional station

Dimensions : 86 mm x 150 mm x  26 mm

Signalling unit with display 109462 SIJ-D

• display the address of the calling place on the display unit
• transmission of acoustic signals in case of staff registration
• option to connect arbitrary number of extension user´s sockets, push buttons and pull cords for emergency calls
• option of staff registration
• option to transmit alarm
• option to transmit client‘s call

Dimensions : 86 mm x 150 mm x  26 mm

Entrance unit 102350 VJ

• option to send a request for talking connection with staff
• implementation of two-way talking connection with master or sectional station
• full-bodied substitute for the so-called electric porter including the control of the relevant electric lock

Dimensions : 86 mm x 150 mm x 26 mm

Sound detector 09242 ZS

• transmission of optical and acoustic signal towards staff, if the noise level in the room reaches / exceeds the set value
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Extension user´s socket 109202 ZU

• option to connect emergency call cord
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Extension user´s socket with push button 109532 ZU-T

• option to transmit client‘s call
• option to connect  emergency call cord
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Emergency call cord 109172 VS-VN

• option to transmit client‘s call
• connected into the extension user´s socket or extension user´s socket with push button

Dimensions : 40 mm x 84 mm x 26 mm

Emergency call push button 109352 TNV

• option to transmit client‘s call
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Emergency call pull cord 109362 TANV

• option to transmit client‘s call
• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Socket of pneumatic switch of emergency call 109382 ZPS

• the element is installed as a peripheral part of directed elements

Dimensions : 86 mm x 86 mm x 26 mm

Pneumatic switch of emergency call 109370 PS

• option to transmit client‘s call

Lamp 109390 SV

• optical signalling as per the type of callling

Dimensions : 86 mm x 86 mm x 48 mm

Direction lamp 109490 SV-S

It is used for easier orientation of staff in the labyrinthine buildings and spaces, for optical indication of calls.

Dimensions : 86 mm x 86 mm x 48 mm

Call cord bracket 102320 ZVS

• used to suspend the emergency call cord

Dimensions : 55 mm x 95 mm x 40 mm

Colour graphic display with a touch screen

Master station is equipped with a colour display with a touch screen. The intuitive operating concept provides high comfort for staff when using the unit.

Transmission of calls to the place of staff registration

Transmission of all client´s calls to the master station and also to all places with staff registration.

Optical signalling above the doors of rooms

Individual calls and movement of staff are optically indicated  by lights located above the doors of rooms..

Transfer of voice messages

If the signalling units with transmitter are installed in the rooms, it is possible to realize one-way communication towards clients called “Central Message”.

Activation of medical alarm

In the system it is possible to activate alarm of the highest emergency called the “Medical Alarm”.

Comfortable programming of the system

Easy and intuitive configuration and programming of the system on master station.

Control of electric locks

The system allows control of the electric door locks. If an entrance unit is installed at the entrance, implementation of two-way talking connection with the entrance unit is possible.

Protection against power failure

In the event of a power outage all data is protected and uninterruptible power supply keeps the system running until the central backup source is started.

Decentralization of the system

The system can work as one unit, or it can be divided into subsystems just by pressing the button, that work completely autonomously.

Displaying of data

Displaying of data on clients and movement of staff on a colour graphic display with a touch screen on master station or on staff units with display.

Staff presence monitoring

The staff registration on registration units allows to be constantly informed about movement of staff. This information is displayed in real time on the master station and on units with display.

Integration with other systems

An option of integration with other systems used in health care facilities (fire alarm, security alarm, databases, etc.).

Signalizační systém produktové řady MediCall

Signalling system of the product line MediCall

MDC SV05

Signalling system MDC SV05 of the product line MediCall is intended to be used in health and social care facilities, nursing homes, spa houses, etc. The system can be expanded with communication units allowing one-way communication towards clients called “Central Messages”. The system can work as one unit, or it can be divided into subsystems just by pressing the button, that work completely autonomously. This feature can be used for example in facilities with temporary staff posts. The system MDC SV05 consists of a set of stand-alone functional units and elements, it can be reconfigured or extended without changing the original connection at any time. All products of MediCall programme are focused on high demands of existing modern operations with emphasis on comfortable and simple operation.

.

Signalling system of the product line MediCall

MDC SV05

Signalling system MDC SV05 of the product line MediCall is intended to be used in health and social care facilities, nursing homes, spa houses, etc. The system can be expanded with communication units allowing one-way communication towards clients called “Central Messages”. The system can work as one unit, or it can be divided into subsystems just by pressing the button, that work completely autonomously. This feature can be used for example in facilities with temporary staff posts. The system MDC SV05 consists of a set of stand-alone functional units and elements, it can be reconfigured or extended without changing the original connection at any time. All products of MediCall programme are focused on high demands of existing modern operations with emphasis on comfortable and simple operation.

.

Power supply unit 109091 NAP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. This power supply unit type is only used if there are up to 100 address elements in the system. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker. Maximal input is 250VA.

Dimensions : 350 mm x 300 mm x 95 mm

Power supply unit 102260 NAP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. This power supply unit type is only used if there are less to 100 address elements in the system. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker. Maximal input is 100VA.

Dimensions : 230 mm x 200 mm x 95 mm

Staff terminal IP Acrios 110013 TP IP

This staff element provides control, monitoring, configuration and administration of the whole system. It is connected to the system through the Ethernet socket (ZE IP).

Features:

• acoustic and optical signalization of individual calls
• calling address visualization
• client’s data visualization, staff movement visualization
• electrical door lock control
• decentralization of the system into the smaller logical units
• user friendly via touch screen
• reception of client’s calls and alarms and an option of its cancellation
• choice of diverting programmes
• client´s names editing
• viewing of cameras installed in the system
• choice of the client according to the room or the name and realization of the connection with the client
• update of staff terminal IP via USB flash drive or from the Internet
• staff registration on TP RFID IP using RFID tag
• loud listening to the diverting programmes on TP IP
• the possibility of implementation of any number of TP IP within the system

Dimensions: 360 mm x 250 mm x 120 mm

Models:
TP N IP (110014) – Wall staff terminal IP Acrios – wall mounting,
TP RFID IP (110013) – Staff terminal with RFID IP Acrios,
TP RFID N (110014) – Wall staff terminal with RFID IP Acrios – wall mounting

For the TP IP version with RFID module, RFID TAG (110500, 110501) is used for staff registration

Possibility of amplifying the power supply by Power adapter TP (ATP 110871) via the ZE IP element.

Client terminal IP 110020 TK IP

Client terminal:

·        sending a request for communication with a nurse or support staff
·        loud communication with a nurse and support staff
·        loud playback of announcements
·        browsing web pages
·        listening to an entertainment programmes
·        watching TV programmes (media streamer connected)
·        connection of headphones
·        control of room equipment – lighting and  Venetian blinds
·        integration of RFID readers for staff registration and identification

Nurse mode (after registration of presence):

• acoustic signalling of clients or staff calls with identification of the calling place on the display unit
• an option to establish talking connection
• an option of undirected calls to physician or nurse
• an option of direct call to any other participant
• an overview of staff movement

Signalling staff terminal IP 110230 TPS IP

It is an element in the wall or desktop version . Calls from beds are preferentially transmitted to this unit and if they are not settled by a predetermined time, they are further transmitted to the whole system. The unit makes possible to connect up 4 wards together.  It is equipped with a button of muted call.

Features:

• option to unit wards
• independent registration for every system
• interception of alarms from individual systems
• identification of the calling person on an alphanumeric display unit
• muted calls

Dimensions: 150 mm x 86 mm x 27 mm

Call cord bracket 102320 ZVS

• used to suspend the emergency call cord

Dimensions : 55 mm x 95 mm x 40 mm

Staff unit with display IP 110331 SJD IP

This element in wall-mounted design is used for devolution of the system. It is useful for example in the intensive care units or in rooms with a constant nurse supervision. Calls from these beds are preferentially transmitted only to this unit and if they are not settled by a predetermined time, they are further transmitted to the whole system.

Functional options of the element:

• variants for a doctor or for a nurse (configuration via the staff terminal)
• connection to up to several stand-alone systems
• separate registration for each system
• sending request for voice communication to each system
• alarm receiving from each system with the option to start voice communication
• voice connection with all communication elements within the system or combined operation of systems
• control of entrance door electrical lock
• identification of incoming calls on display

Dimensions:
54mm x 200mm x 28mm (phone receiver)
150 mm x 86 mm x 45 mm

Communication unit IP 110310 KJ IP

Communication unit is the central unit of a bed room associating control elements of clients and staff.

Features:

• selection of nurse registration (push-button, tag)
• an option to control the electric lock of the entrance door
• transmitting requests for establishing a connection with the nurse
• loud communication connection with staff
• an option to connect the telephone handset for a discrete connection via the connector of the communication unit (version with connector)
• connection of call cord via the connector of the communication unit (version with connector)
• listening to diverting programmes with volume control
• acceptance of telephone calls from public telephone network
• reception of calls from systems in the combined operation with the option of mutual communication
• nurse presence registration
• staff alarm initialization
• connection of emergency call push-buttons and pull cords via SBUS
• loud playback of announcements from the staff terminal. The announcements can be directed to a selected room or to all rooms in the ward
• acoustic signalization of incoming calls from other points in the system or in other systems (if they are combined)
• control of the optical signalling lamp
• an option to implement internal wireless receiver module

Dimensions: 130 mm x 150 mm x 27 mm

Models:
KJ RFID IP (110310) Communication unit with RFID IP,
KJK IP (110311) Communication unit with connector IP,
KJB IP (110312) Communication unit wireless 868 IP,
KJB RFID IP (110312) Communication unit wireless 868 with RFID IP,
KJKB IP (110313) Communication unit with connector wireless 868 IP,
KJKB IP (110313) Communication unit with connector wireless 868 with RFID IP,
KJB IP (110314) Communication unit wireless 869 S IP,
KJB RFID IP (110314) Communication unit wireless 869 S with RFID IP

Unlimited architecture

The system works on the basis of voice transmission VoIP providing unlimited number of voice and data channels. This makes possible to build any system architecture at the stage of design and implementation. In the future the system can be easily modified and expanded according to user requirements and needs.

Colour graphic display with a touch screen

Staff terminal and Client terminal are equipped with a 12″ colour display with a touch screen that ensures the intuitive operation via pictograms. The intuitive operating concept provides high comfort for staff and clients when using the terminals.

Remote administration and upgrade

The concept of system administration and maintenance is based on remote access via Internet. Remote administration allows to diagnose a defect or a problem with system operation, data maintenance, system configuration or reconfiguration. It is also possible to update or upgrade any system software.

Self-diagnostic functions

Reliability of system operation is ensured, among other things, by self-diagnostic functions that ensure system monitoring. In case of disconnected or defective units this condition is indicated. All errors and defects are transmitted in real time, with an emphasis on their immediate removal.

RFID registration

The staff registration in the system is standardly realized by the registration buttons. This registration is anonymous without the possibility to identify medical staff. To have a control over the system operation you can choose RFID tags and readers for staff registration. This functionality allows you to identify staff individually according to the assigned tags. Also identification of different levels of staff – physicians, nurses, support staff, etc. – is possible.

Code blue

In the system it is possible to activate „Blue code“, that indicates a patient requiring immediate resuscitation.

Data storage

Recording and storage of all activities in the system (client calls, call connections, registrations, alarms, etc.) with the option to view them on the display unit of the staff terminal or on a PC.

Control of room equipment

An option to control TV, Venetian blinds or Internet radio by the client´s  units.

Protection against power failure

In the event of a power outage all data is protected and uninterruptible power supply keeps the system running until the central backup source is started.

Non-destructive connectors

To protect client´s units from mechanical damage, magnetic non-destructive connectors can be used for event of strain in any direction.

Voice navigation

The transmission of the caller ID through audio signal.

Displaying of data

Displaying of data on clients and movement of staff on a 12“ colour graphic display with a touch screen on staff terminal.

Integration with other systems

An option of integration with other systems used in health care facilities (fire alarm, security alarm, databases, etc.).

Staff presence monitoring

The staff registration on registration units allows to be constantly informed about movement of staff. This information is displayed in real time on the staff terminal and on units with display, and stored with an option of back viewing.

Communication unit with display IP 110320 KJD IP

In comparison to the Communication unit IP the element is expanded with an alphanumeric display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 130 mm x 150 mm x 27 mm

Models:
KJD RFID IP (110320) Communication unit with display and RFID IP,
KJDB IP (110321) Communication unit with display wireless 868 IP,
KJDB RFID IP (110321) Communication unit with display wireless 868 with RFID IP,
KJDB IP (110322) Communication unit with display wireless 869 S IP,
KJDB RFID IP (110322) Communication unit with display wireless 869 S with RFID IP

Communication unit with touch screen display IP 110201 KJDD IP

In comparison to the Communication unit IP the element is expanded with an touch screen display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 130 mm x 150 mm x 27 mm

Models:
KJDD RFID IP (110201) – Communication unit with touch screen display and RFID IP

Entrance communication unit IP 110281 VKJ IP

This element is installed next to the ward entrance door and is intended mainly for visitors.

Features:

• sending a request for communication with staff members
• voice communication

Dimensions: 130 mm x 150 mm x 27 mm

Models:
VKJ RFID IP (110281) – Entrance communication unit with RFID IP

LJ bracket with loudspeaker IP 110125 ZLJR IP

The unit is equipped with a loudspeaker for one-way loud call connection and with a connector for connection of participant´s units.

Functional options of the element:

• one-way loud call connection
• connection of bedside unit for discrete (phone) call connection
• connection of call cord with microphone for loud call connection
• connection of call cord
• loud listening to entertainment programs
• loud reproduction of messages from staff terminal and staff unit with display
• detection of raised and hanged-up handset (bedside unit)

Dimensions: 150 mm x 86 mm x 45 mm

Variant: ZLJR DIN IP – LJ bracket  with loudspeaker DIN IP (110124)

User´s bracket unit with loudspeaker IP 110142 ZUR IP

Models:
ZUR RFID IP (110142) – User´s bracket unit with loudspeaker and RFID IP,
ZURB IP (110143) – User´s bracket unit with loudspeaker wireless 868 IP

Bedside unit with display IP 110100 LJD IP

This element in the shape of a telephone receiver is usually placed next to a patient’s or client’s bed. It can be connected to the system in two ways: as a standard by a connector built in Bedside unit bracket with connector IP or via a connector in Extension user´s socket IP if the system is a part of bed head units. In the later case, Bedside unit bracket without connector IP is also a part of the delivery.

The relay module provides connection between controlling device and light or other equipment.

Using LJD IP, it is possible to control the lighting on bedside unit or in the room, Relay module for lighting IP (110115) provides connection between the controlling device and light.

From the loudspeaker of LJD IP, LJO IP or LJ IP it is possible to listen to TV. For transferring sound from TV to the MDC V04 IP system TV interface IP (110160) is used.

Features:

• sending a request and making a call
• listening to two entertainment programmes of choice
• volume control for entertainment programmes
• display with date, time, entertainment programme
• making phonecalls
• acceptance of incoming phonecalls from ATE

Dimensions:
54 mm x 200 mm x 25 mm (LJD IP)
86 mm x 150 mm x 45 mm (ZLJK IP)

Bedside unit IP 110116 LJ IP

This element in the shape of a telephone receiver is usually placed next to a patient’s or client’s bed. It can be connected to the system in two ways: as a standard by a connector built in Bedside unit bracket with connector IP or via a connector in Extension user´s socket IP if the system is a part of bed head units. In the later case, Bedside unit bracket without connector IP is also a part of the delivery.

Features:

• sending a request and making a call
• listening to two entertainment programmes of choice
• volume control for entertainment programmes
• making phonecalls
• acceptance of incoming phonecalls from ATE

Dimensions:
54 mm x 200 mm x 25 mm (LJ IP)
86mm x 150mm x 45mm (ZLJK IP)

Models: LJO IP (110117) – Bedside unit with lighting control IP

LJ bracket with connector IP 110123 ZLJK IP

The bracket is used for connection of the Bedside unit IP (possibility of hanging-up) or Call cord IP via a connetor.

Dimensions: 86 mm x 150 mm x 45 mm

Models:
ZLJKE IP (110121) – LJ bracket with ethernet IP,

User's socket IP 110190 ZU IP

It is used for connection of Emergency call cord IP,  or on a head bed unit for connection of Bedside unit IP.

Dimensions: 86 mm x 86 mm x 27 mm

Models: ZUO IP (110191) – User´s socket with lighting control IP

Call cord with microphone IP 110152 VSM IP

This is a switch with a vintage phone cord and with integrated microphone. It is connected via a connector to ZLJR IP  or KJK IP.
The device allows to send a call and establish voice communication with staff using the loudspeaker on the connected units.

Dimensions: 40x84x27 mm + cord

Call cord IP 110150 VS IP

This is a switch with a vintage phone cord. It is connected to ZVST IP, ZU IP, ZLJK IP, ZLJR IP, ZUR IP, KJ IP or KJD IP via a connector.

The switch works just as a button which makes possible to send a request for voice communication.

Dimensions: 40 mm x 84 mm x 27 mm

Variants: VSB IP – Call cord for ZVSB 868 IP (110153)

Socket for call cord with push button IP 110165 ZVST IP

It is used for connection of Emergency call cord IP.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
ZVSB IP (110166) – Socket for call cord wireless 868 IP,
ZVSB IP (110167) – Socket for call cord wireless 869 S IP

Call and cancel button IP 110820 VRT IP

This element is installed in bathrooms and toilets which are part of the room. It is used when it is required to cancel the emergency call at the place where the call was activated.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord with push button IP 110411 TTNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord IP 110410 TANV IP

This element is similar to Emergency call push button IP. It is usually placed in bathrooms above bathtubs and in showers at least 2,25 m above the floor.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
TANVB IP (110412) Еmergency call pull cord wireless 868 IP,
TANVB IP (110413) Еmergency call pull cord wireless 869 S IP

Emergency call push button IP 110400 TNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Socket for pneumatic switch IP 110430 ZPS IP

It is used  for connection of Pneumatic switch 110420 (the element consists of air ballon and a tube for diaphragm switch control in extremely humid environment or in spa / rehabilitation bathtubs. The balloon can float in water).

In connection with Signalling unit IP or Communication unit IP  it enables to send  emergency call to the system.

It is ususally installed above or next to a bathtub, or wherever else needed.

Dimensions: 86 mm x 86 mm x 27 mm

Lamp IP 110441 SV IP

In connection with the attached element optically signalizes status of a particular place.

Dimensions: 86 mm x 86 mm x 48 mm

Direction lamp with buzzer IP 110451 SVS IP

It is used for easier orientation of staff in the labyrinthine buildings and spaces, for optical indication of calls.

Dimensions : 86 mm x 86 mm x 48 mm

Interface for information monitor IP 110540 IIM IP

A source of video signal for Information monitor IP.

Dimensions: 150 mm x 86 mm x 27 mm

Information monitor 32" 110550 IM

It is an 32″ information monitor which is usually installed in the corridor. The monitor displays information about individual calls – address of the place of call activation, type of call, caller´s name, medical alarm,  presence, date/time.

Signalling unit IP 110250 SIJ IP

This element is used in bathrooms and toilets (if these are not a part of a bed room) or in places of temporary staff presence to which acoustic signals from the system need to be redirected.

Features:

• emergency call initialization
• staff registration
• alarm initialization
• connection of any number of emergency call push buttons and pull cords
• acoustic signals redirection if staff is registered

Input SBUS module IP (MV SBUS IP – 110480) provides connection between external devices (fire alarm system, etc.) and
MDCV 04 IP system. It is used wherever you need to connect an external device to switch on potential-free contact .

Socket for external device (ZEZ IP – 110481) is fully analogous to the Input SBUS module IP, it is equipped with a RJ11 connector.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
SIJ RFID IP (110250) – Signalling unit with RFID IP,
SIJB IP (110251) – Signalling unit wireless 868 IP,
SIJB RFID IP (110251) – Signalling unit wireless 868 with RFID IP,
SIJB IP (110252) – Signalling unit wireless 869 S IP,
SIJB RFID IP (110252) – Signalling unit wireless 869 S with RFID IP

Signalling unit with display IP 110260 SIJD IP

This element is identical to Signalling unit but features in addition an alphanumeric display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 86 mm x 150 mm x 27 mm

Models:
SIJD RFID IP  (110260) – Signalling unit with display and RFID IP,
SIJDB IP (110261) – Signalling unit with display wireless 868 IP,
SIJDB RFID IP (110261) – Signalling unit with display wireless 868 with RFID IP,
SIJDB RFID IP (110262) – Signalling unit with display wireless 869 S with RFID IP

Wireless push button 868 IP 110361 BTU IP

The element is used for wireless emergency calls. It comes in handy especially if the patient can freely move about the room but he or she has to be able to call help at any time, for example in case of a seizure.

Dimensions: 55 mm x 45 mm x 15 mm

Models:

BTU IP (110361) – Wireless push button 868 IP on the neck,
BTU IP (110361) – Wireless push button 868 IP with clip,
BTU IP (110362) – Wireless push button 869 S IP,
BTU IP (110362) – Wireless push button 869 S IP on the neck,
BTU IP (110362) – Wireless push button 869 S IP with clip,
BTUM IP (110363) – Wireless push button 869 S IP
BTUM IP (110363) – Wireless push button 869 S multi IP on the neck,
BTUM IP (110363) – Wireless push button 869 S multi IP with clip
BTUM IP (110363) – Wireless push button 869 S multi IP

LJ bracket without connector IP 110131 ZLJ IP

This element is used to hang up Bedside unit IP if the system cables terminate in bed head units.

Dimensions: 86 mm x 150 mm x 45 mm

Call cord bracket for ZLJ 109500 ZVSZ

This element is used along with Bedside unit bracket with connector IP, when instead of a bedside unit only call cord is used at the client’s bed.

Dimensions: 55 mm x 95 mm x 40 mm

Ethernet socket IP 110030 ZE IP

The Ethernet socket is used as an interface for connecting of the Staff terminal IP Acrios (TP IP), Signalling staff terminal (TPS IP) desktop variant, Staff unit with display (SJD IP) desktop variant, to the system bus.

Dimensions: 86 mm x 86 mm x 27 mm

Outdoor entrance communication unit 2 IP Acrios 110294 VKJV2 IP

The element is used in places that are exposed to weather influences (entrance to buildings) and it is used especially by visitors. It is provided as a whole including its metal casing.

Features:

• sending a request for communication with staff
• voice communication

Dimensions: 135 mm x 225 mm x 75 mm

Models:
VKJV4 IP (110293) Outdoor entrance communication unit 4 IP Acrios

The unit can be expanded with CRVKJV IP (110561) – RFID Reader VKJV IP – for opening EZ
by RFID tags from the place next to VKJV2 IP.

VKJV adaptor IP Acrios 110303 AVKJV IP

This electronic device along with Outdoor entrance communication unit 2 IP Acrios makes up one functional whole. It is never installed outdoor but always near the outdoor entrance communication unit.

It does not contain any controls.

Dimensions: 150 mm x 86 mm x 27 mm

Electric lock controller IP 110470 OEZ IP

The element is used to create a voltage to control the electric lock. Installation in the interior only.

Functional options of the element:

• an option to set up input voltage of the electric lock 6 V/9 V/12 V
• set up for used type of electric lock (inactiv closed/open)
• set up AC/DC

Electric lock is not a part of the MediCall system supply.

Dimensions: 46 mm x 26 mm x 30 mm

RFID reader IP  (CRFID IP – 110560) – electric door lock control by RFID tag.

Indoor camera set IP 110650 SK IN IP

IP camera is used for video transmission from the requested places in the object to the Staff terminal IP Acrios, for example entrance door to the ward or building. IP camera is usually used together with Entrance communication unit IP.

Dimensions: depending upon the type

Models:
SK OUT IP (110651) – Outdoor camera set IP
SK D IP (110652) – Indoor camera set with detection IP

Wireless staff unit IP 110600 BSJ IP

The wireless staff unit consists of a base station and a handset.

Base station is a part of the set, which ensures communication with the wireless handset, communication over the local area network (LAN) provided with the router (switch), and making phone calls using ATE. The range of gigaset base station is limited, up to 50 m indoors, the range is reduced when ECO mode is activated. Power supply is realized from the backbone line of the MediCall system by connection via power adapter, which is part of the set.

Handset is a receiving apparatus, providing connection with the base station. Handset charger is a part of the set.The wireless staff unit is a standart mobile phone, which is connected to the system via the base station. It can be used in staff´s rooms, or in the place of staff terminal installation. The element enables staff members movements within the range of the mobile phone  while maintaining the availability of immediate care and help.

Repeater for BSJ IP (110601)  is used for increasing the range of Gigaset Base station and at the same time it extends the reception range of the handsets. Within such an extended area it is possible to use all the features as on the base station.

Features:

• variants for a doctor or for a nurse
• connection to several systems
• separate registration for each system
• sending request for talking connection to each system
• alarm receiving from each system with the option to start voice communication
• voice connection with all communication elements within the system or combined operation of systems
• simultaneous direct connection to ATE

Management centre VoIP Acrios 110041 SSV IP

It is the central element for control and administration of the system.

Dimensions: 119 mm x 245 mm x 245 mm

Switch 8 ports ( SW8 – 110660) is a part of delivery, for connection of  each branch of the system wiring.

Uninterruptible power supply for SSV  (ZZ – 110690) provides emergency power to the server when the input power source or mains power fails, and it also protects the server from overvoltage.

Data rack TRITON 19″ 6U (DR6 – 110790) for mounting multiple electronic equipment modules – server SSV IP, switch devices (data switch is a part of server supply), size of rack  6U with removable side panels, IP30 protection.

Analog/VoiP gateway IP (AVB IP – 110810) ensures the connection of the system with public telephone networks.

GSM gateway SMS IP Acrios (GSM SMS IP – 110852) ensures the connection of the MDC V04 IP system with the GSM network.

Detection gate module IP (MDB IP – 110861) monitors persons leaving the given sector or building without permission. Antenna for detection gate module IP (AMDB IP – 110862).

Pager base station (PU – 110670), Text pager (PT – 110680), Control panel of pager IP  (OPP IP – 110675) – these elements ensure signal transfer from the MDC V04 IP system. The information is transmitted in text form to the Text pager.

Audio program module IP 110520 MAP IP

It is a source of entertainment program (2 FM channels), which is transmitted to the system.

Dimensions: 150 mm x 86 mm x 27 mm

Switch module ZPT IP 110640 SM IP

Installation element for the construction of the system Ethernet network.

Dimensions: 115 mm x 70mm x 15 mm

Power supply unit 350W 24V 110091 N350 IP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker.

Dimensions : 305 mm x 200 mm x 95 mm

Integration of IP cameras

The system allows integration of IP cameras with image transfer to the staff terminal. This functionality is very often used in combination with the entrance communication units -replacement of the door videophone.

Communication and multimedia IP system of the product line MediCall

Communication and multimedia IP system of the product line MediCall

MDC V04 IP

Communication and multimedia system MDC V04 IP of the product line MediCall helps the nursing staff in modern health and social care facilities to improve communication with patients and caregiver efficiency. At any time, it is possible to expand the system by adding other units and features based on IP technologies.

System MDC V04 IP is one of our best-selling products. The system is characterized by high reliability, flexibility and variability, it is user friendly, with self-diagnostic features, flawless security and an option of remote administration via Internet.

The MDC V04 IP system consists of a set of stand-alone functional units and elements.. The product line MediCall meets the high demands of today´s modern facilities with  emphasis on comfortable and simple operation.

Communication and multimedia IP system of the product line MediCall

MDC V04 IP

Communication and multimedia system MDC V04 IP of the product line MediCall helps the nursing staff in modern health and social care facilities to improve communication with patients and caregiver efficiency. At any time, it is possible to expand the system by adding other units and features based on IP technologies.

System MDC V04 IP is one of our best-selling products. The system is characterized by high reliability, flexibility and variability, it is user friendly, with self-diagnostic features, flawless security and an option of remote administration via Internet.

The MDC V04 IP system consists of a set of stand-alone functional units and elements.. The product line MediCall meets the high demands of today´s modern facilities with  emphasis on comfortable and simple operation.

Signalling staff terminal IP 110230 TPS IP

It is an element in the wall or desktop version . Calls from beds are preferentially transmitted to this unit and if they are not settled by a predetermined time, they are further transmitted to the whole system. The unit makes possible to connect up 4 wards together.  It is equipped with a button of muted call.

Features:

• option to unit wards
• independent registration for every system
• interception of alarms from individual systems
• identification of the calling person on an alphanumeric display unit
• muted calls

Dimensions: 150 mm x 86 mm x 27 mm

Signalizační systém IP produktové řady MediCall

Signalling IP system of the product line MediCall

MDC V04 IP S

Signalling system MDC V04 IP S of the product line MediCall helps the nursing staff in modern healthcare and social care facilities where talking connection is not required to improve communication with patients. At any time,  it is possible to expand the system by adding other units and features based on IP technologies.
The signalling system is characterized by high reliability, flexibility and variability, it is user friendly, with self-diagnostic features, flawless security and an option of remote administration via Internet.
The system MDC V04 IP S consists of a set of stand-alone functional units and elements. All products of MediCall programme are focused on high demands of existing modern operations with emphasis on comfortable and simple operation.

Signalling IP system of the product line MediCall

MDC V04 IP S

Signalling system MDC V04 IP S of the product line MediCall helps the nursing staff in modern healthcare and social care facilities where talking connection is not required to improve communication with patients. At any time,  it is possible to expand the system by adding other units and features based on IP technologies.
The signalling system is characterized by high reliability, flexibility and variability, it is user friendly, with self-diagnostic features, flawless security and an option of remote administration via Internet.
The system MDC V04 IP S consists of a set of stand-alone functional units and elements. All products of MediCall programme are focused on high demands of existing modern operations with emphasis on comfortable and simple operation.

Unlimited architecture

The system works on the basis of voice transmission VoIP providing unlimited number of voice and data channels. This makes possible to build any system architecture at the stage of design and implementation. In the future the system can be easily modified and expanded according to user requirements and needs.

Colour graphic display with a touch screen

Staff terminal and Client terminal are equipped with a 12″ colour display with a touch screen that ensures the intuitive operation via pictograms. The intuitive operating concept provides high comfort for staff and clients when using the terminals.

Remote administration and upgrade

The concept of system administration and maintenance is based on remote access via Internet. Remote administration allows to diagnose a defect or a problem with system operation, data maintenance, system configuration or reconfiguration. It is also possible to update or upgrade any system software.

Self-diagnostic functions

Reliability of system operation is ensured, among other things, by self-diagnostic functions that ensure system monitoring. In case of disconnected or defective units this condition is indicated. All errors and defects are transmitted in real time, with an emphasis on their immediate removal.

RFID registration

The staff registration in the system is standardly realized by the registration buttons. This registration is anonymous without the possibility to identify medical staff. To have a control over the system operation you can choose RFID tags and readers for staff registration. This functionality allows you to identify staff individually according to the assigned tags. Also identification of different levels of staff – physicians, nurses, support staff, etc. – is possible.

Code blue

In the system it is possible to activate „Blue code“, that indicates a patient requiring immediate resuscitation.

Data storage

Recording and storage of all activities in the system (client calls, call connections, registrations, alarms, etc.) with the option to view them on the display unit of the staff terminal or on a PC.

Protection against power failure

In the event of a power outage all data is protected and uninterruptible power supply keeps the system running until the central backup source is started.

Non-destructive connectors

To protect client´s units from mechanical damage, magnetic non-destructive connectors can be used for event of strain in any direction.

Displaying of data

Displaying of data on clients and movement of staff on a 12“ colour graphic display with a touch screen on staff terminal.

Integration with other systems

An option of integration with other systems used in health care facilities (fire alarm, security alarm, databases, etc.).

Staff presence monitoring

The staff registration on registration units allows to be constantly informed about movement of staff. This information is displayed in real time on the staff terminal and on units with display, and stored with an option of back viewing.

Call cord IP 110150 VS IP

This is a switch with a vintage phone cord. It is connected to ZVST IP, ZU IP, ZLJK IP, ZLJR IP, ZUR IP, KJ IP or KJD IP via a connector.

The switch works just as a button which makes possible to send a request for voice communication.

Dimensions: 40 mm x 84 mm x 27 mm

Variants: VSB IP – Call cord for ZVSB 868 IP (110153)

Socket for call cord with push button IP 110165 ZVST IP

It is used for connection of Emergency call cord IP.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
ZVSB IP (110166) – Socket for call cord wireless 868 IP,
ZVSB IP (110167) – Socket for call cord wireless 869 S IP

Call and cancel button IP 110820 VRT IP

This element is installed in bathrooms and toilets which are part of the room. It is used when it is required to cancel the emergency call at the place where the call was activated.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord with push button IP 110411 TTNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Emergency call pull cord IP 110410 TANV IP

This element is similar to Emergency call push button IP. It is usually placed in bathrooms above bathtubs and in showers at least 2,25 m above the floor.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
TANVB IP (110412) Еmergency call pull cord wireless 868 IP,
TANVB IP (110413) Еmergency call pull cord wireless 869 S IP

Emergency call push button IP 110400 TNV IP

This element, in connection with Signalling unit IP or Communication unit IP sends emergency call to the system.

It is located usually in bathrooms and showers near toilets and washbasins.

Dimensions: 86 mm x 86 mm x 27 mm

Socket for pneumatic switch IP 110430 ZPS IP

It is used  for connection of Pneumatic switch 110420 (the element consists of air ballon and a tube for diaphragm switch control in extremely humid environment or in spa / rehabilitation bathtubs. The balloon can float in water).

In connection with Signalling unit IP or Communication unit IP  it enables to send  emergency call to the system.

It is ususally installed above or next to a bathtub, or wherever else needed.

Dimensions: 86 mm x 86 mm x 27 mm

Lamp IP 110441 SV IP

In connection with the attached element optically signalizes status of a particular place.

Dimensions: 86 mm x 86 mm x 48 mm

Direction lamp with buzzer IP 110451 SVS IP

It is used for easier orientation of staff in the labyrinthine buildings and spaces, for optical indication of calls.

Dimensions : 86 mm x 86 mm x 48 mm

Signalling unit IP 110250 SIJ IP

This element is used in bathrooms and toilets (if these are not a part of a bed room) or in places of temporary staff presence to which acoustic signals from the system need to be redirected.

Features:

• emergency call initialization
• staff registration
• alarm initialization
• connection of any number of emergency call push buttons and pull cords
• acoustic signals redirection if staff is registered

Input SBUS module IP (MV SBUS IP – 110480) provides connection between external devices (fire alarm system, etc.) and
MDCV 04 IP system. It is used wherever you need to connect an external device to switch on potential-free contact .

Socket for external device (ZEZ IP – 110481) is fully analogous to the Input SBUS module IP, it is equipped with a RJ11 connector.

Dimensions: 86 mm x 86 mm x 27 mm

Models:
SIJ RFID IP (110250) – Signalling unit with RFID IP,
SIJB IP (110251) – Signalling unit wireless 868 IP,
SIJB RFID IP (110251) – Signalling unit wireless 868 with RFID IP,
SIJB IP (110252) – Signalling unit wireless 869 S IP,
SIJB RFID IP (110252) – Signalling unit wireless 869 S with RFID IP

Signalling unit with display IP 110260 SIJD IP

This element is identical to Signalling unit but features in addition an alphanumeric display which provides the user with details on current calls – exact address of call initialization, type of call, description of the calling place, the name of the calling client.

Dimensions: 86 mm x 150 mm x 27 mm

Models:
SIJD RFID IP  (110260) – Signalling unit with display and RFID IP,
SIJDB IP (110261) – Signalling unit with display wireless 868 IP,
SIJDB RFID IP (110261) – Signalling unit with display wireless 868 with RFID IP,
SIJDB RFID IP (110262) – Signalling unit with display wireless 869 S with RFID IP

Wireless push button 868 IP 110361 BTU IP

The element is used for wireless emergency calls. It comes in handy especially if the patient can freely move about the room but he or she has to be able to call help at any time, for example in case of a seizure.

Dimensions: 55 mm x 45 mm x 15 mm

Models:

BTU IP (110361) – Wireless push button 868 IP on the neck,
BTU IP (110361) – Wireless push button 868 IP with clip,
BTU IP (110362) – Wireless push button 869 S IP,
BTU IP (110362) – Wireless push button 869 S IP on the neck,
BTU IP (110362) – Wireless push button 869 S IP with clip,
BTUM IP (110363) – Wireless push button 869 S IP
BTUM IP (110363) – Wireless push button 869 S multi IP on the neck,
BTUM IP (110363) – Wireless push button 869 S multi IP with clip
BTUM IP (110363) – Wireless push button 869 S multi IP

Call cord bracket for ZLJ 109500 ZVSZ

This element is used along with Bedside unit bracket with connector IP, when instead of a bedside unit only call cord is used at the client’s bed.

Dimensions: 55 mm x 95 mm x 40 mm

Ethernet socket IP 110030 ZE IP

The Ethernet socket is used as an interface for connecting of the Staff terminal IP Acrios (TP IP), Signalling staff terminal (TPS IP) desktop variant, Staff unit with display (SJD IP) desktop variant, to the system bus.

Dimensions: 86 mm x 86 mm x 27 mm

Management centre VoIP Acrios 110041 SSV IP

It is the central element for control and administration of the system.

Dimensions: 119 mm x 245 mm x 245 mm

Switch 8 ports ( SW8 – 110660) is a part of delivery, for connection of  each branch of the system wiring.

Uninterruptible power supply for SSV  (ZZ – 110690) provides emergency power to the server when the input power source or mains power fails, and it also protects the server from overvoltage.

Data rack TRITON 19″ 6U (DR6 – 110790) for mounting multiple electronic equipment modules – server SSV IP, switch devices (data switch is a part of server supply), size of rack  6U with removable side panels, IP30 protection.

Analog/VoiP gateway IP (AVB IP – 110810) ensures the connection of the system with public telephone networks.

GSM gateway SMS IP Acrios (GSM SMS IP – 110852) ensures the connection of the MDC V04 IP system with the GSM network.

Detection gate module IP (MDB IP – 110861) monitors persons leaving the given sector or building without permission. Antenna for detection gate module IP (AMDB IP – 110862).

Pager base station (PU – 110670), Text pager (PT – 110680), Control panel of pager IP  (OPP IP – 110675) – these elements ensure signal transfer from the MDC V04 IP system. The information is transmitted in text form to the Text pager.

Switch module ZPT IP 110640 SM IP

Installation element for the construction of the system Ethernet network.

Dimensions: 115 mm x 70mm x 15 mm

Power supply unit 350W 24V 110091 N350 IP

This is a stand-alone unit, its input is connected to the main and its output to the supply leadwire. Input requirements: 1+N+PE 230V/50Hz. Main power supply leadwires must be secured by a separate 6A circuit breaker.

Dimensions : 305 mm x 200 mm x 95 mm

Loga referencí

Hospitals CZ, SK

Bánovce nad Bebravou Hospital
Banská Bystrica Central Slovakian Institute of Heart Diseases
Bílovec Hospital phase I
Hospital phase II
Bojnice Hospital and Health Center
Bratislava University Hospital Kramáre – Surgery Clinic, Children´s Department University Hospital Ružinov
Brothers of Mercy Hospital
Hospital of Defense Department
St. Elizabeth’s Oncology Institute
Research Institute of Rheumatic Diseases
Sanatorium KOCH
Břeclav Hospital
Brno St. Anne’s University Hospital Brno
Bruntál Hospital
Čáslav Hospital – Department of Gynaecology, Internal Medicine and Intensive Care Unit, Children’s Hospital Department, Maternity Department
Čeladná Hospital – Department of Internal Medicine and Intensive Care Unit
Červená Voda Medical Institution
Český Brod Hospital
Cvikov Hospice, PCCM
Děčín Hospital – Department of Gynaecology and ENT
Dolný Kubín Hospital
Dunajská Streda Hospital and Health Center – Department of Internal Medicine and Maternity
Frýdek-Místek Hospital – PCCM
Havířov Hospital – Maternity Department
Havlíčkův Brod Hospital – Children’s Department, Department of Oncology, PCCM, Psychiatry
Hodonín Hospital – Department of Internal Medicine
Hrabyně The Rehabilitation Institute
Hradec Králové University Hospital – Oncology Pavilion
Private Surgical Center SANUS
Hranice n. M Hospital – Department of Internal Medicine and Surgery
Humenné Hospital – Department of Maternity, Infectious Deseases
Ivančice Hospital
Jablonec n.Nisou Hospital
Jihlava Hospital and Health Center – Department of Surgery, Internal Medicine, Intensive Care Unit, ENT
Karviná The Miners Hospital
Košice University Hospital and Health Center – Children´s Oncology
The University Hospital – Nephrology
East Slovakia Institute of Cardiovascular Diseases
East Slovakia Oncology Institute
Railway Hospital – Department of Internal Medicine, Surgery and Neurology
Health Center KVP
Institute of Nuclear Medicine
Kolín Hospital – Department of Geriatric Medicine, Internal Medicine, Oncology
Krnov Hospital – Children´s Department, PCCM, Maternity Department, Department of Surgery, Internal Medicine, Neurosurgery, Urology,Intensive Care Unit
Kroměříž Hospital and Health Center – Department of Surgery,Stomatology
Krompachy Hospital and Health Center
Kyjov Hospital and Health Center – Department of Surgery, Gynaecology, Neurosurgery, Dermatology, Infectious Diseases, Internal Medicine, Urology, Maternity Department
Lázně Bohdaneč Spa Bohdaneč
Lehnice Hospital – 2nd floor
Levice Hospital and Health Center
Levoča Hospital – Maternity Department
Liberec Hospital – Department of Oncology
Litomyšl Hospital – Hospice
Lomnice nad Popelkou Hospice
Lučenec Hospital – Neurology
Martin University Hospital – Department of Gynaecology and Maternity, Coronary Care Unit, Dermatology, Radiology, Surgery Pavilion
Městec Králové Hospital – Department of Internal Medicine, Hospice
Most Hospice
Náchod Hospital – Department of Gynaecology, Maternity Department, ENT, Anesthesiology and Resuscitation, Infectious Diseases, Rehabilitation
Nitra Zobor – reconstructed pavilion
Nový Jíčín Hospital – Intensive Care Unit, Department of Internal Medicine
Nové Město na Moravě Hospital – Department of Surgery
Nové Zámky University Hospital and Health Center
Nymburk Hospital – Maternity Department
Olomouc University Hospital – Gynaecology, Children´s Oncology, Department of Ophthalmology,ENT,Bone Marrow Transplantation, The Haematology and Blood Transfusion Department
Military Hospital – Department of Internal Medicine, Intensive Care Unit, Neurosurgery, Neurology,Ophthalmology, Radiology, Psychiatry
Opava Hospital
Ostrava Fifejdy – Klein sanatorium
Fifejdy – Town Hospital – Department of Internal Medicine, Neurology
University Hospital Poruba – Children´s Department, Oncology, Rehabilitation, Infectious Diseases Pavilion
Paseka Professional Medical Institute
Pelhřimov Hospital
Pezinok Psychiatric Hospital D.Pinela
Piešťany Hospital – Department of Surgery, Children´s Department
Plzeň University Hospital – Pavilion 22 , 7. – 8th floor, Pavilion 22, 5 – 6th floor, Oncology
University Hospital Bory
University Hospital Lochotín
Privamed – Surgery, Rehabilitation, Neurology
Podunajské Biskupice National Institute of Tuberculosis and Respiratory Diseases
Polička Hospital
Považská Bystrica Hospital and Health Centre
Praha Bohnice – Psychiatry
Bulovka AIDS Help Center
University Hospital – Department of Internal Medicine Pavilion R
University Hospital Pavilion S
University Hospital Pavilion S1
IKEM – B 5 Coronary Department
IKEM – Cardiology Clinic JIMP
IKEM – new building
IKEM – Department LO-A,B
IKEM – object 2023
IKEM – object 2022,1002
Clinic GHC
Hospital Prosek
Rehabilitation Medicine Clinic Malvazinky
Institute of Blood Transfusion
Institute of Aviation Medicine
Institute for Mother and child
Central Military Hospital
General University Hospital – Surgery 1, Internal Medicine Clinic, Department of Internal Medicine B + C, D, Severance Surgery, Transplantation, Oncology, Stomatology, Maternity Department
Prešov University Hospital – Department of Neurology, Intensive Care Unit
Přerov Hospital Pavilion G, SO 001, Intensive Care Unit, Department of Internal Medicine
Púchov Hospital “Zdravie”
Rimavská Sobota Hospital and Health Center
Ružomberok The Central Military HOSPITAL – Department of Internal Medicine, Maternity, Neurology, ENT, Neurosurgery, Surgery, Object No. 20
Rychnov nad Kněžnou Hospital – Children´s Department and Department of Internal Medicine
Semily Hospital
Sobrance Town Hospital
Spišská Nová Ves Hospital and Health Center – Department of Surgery, Internal Medicine, Neurology
Šternberk Hospital – Maternity Department
Stropkov Hospital – Department of Internal Medicine
Sušice Hospital – Surgery II., Department of Internal Medicine, Oncology
Šumperk Hospital – ENT Pavilion
Svitavy Hospital – Hospice, Intensive Care Unit, Anesthesiology and Resuscitation
Tábor Hospital and Health Center – Department of Infectious Diseases, Hospice
Tanvald Hospital – 2nd and 3rd floor, Hospice
Tashkent Beruniy Hospital
Těchonín Inpatient Unit
Tišnov Hospital
Třebíč Hospital
Trebišov Hospital and Health Centеr – Dialisys Centеr
Trenčín Hospital and Health Center
Třinec Hospital Podlesí – Anesthesiology and Resuscitation, Surgery, Cardiology + Intensive Care Unit, Coronary Care Unit
Hospital – Department of Infectious Diseases,Pavilion E 5
Trnava The University Hospital and Health Center – Oncology, Ophthalmology
Institute of Health
Trstená Hospital and Health Center
Uherský Brod Hospital and Health Center – Hospice
Vranov n.T. Hospital – Surgery
Vsetín Hospital
Vyšné Hágy TARCH
Vysoké nad Jizerou Institute of Plastic Surgery
Žilina Hospital – Department of Maternity, Ophthalmology, Anesthesiology and Resuscitation
Zlín Baťa Hospital
Zlaté Moravce Hospital – Department of Internal Medicine

Care sector CZ, SK

Bánovce nad Bebravou Hospice
Banská Bystrica Hospice
Bechyně Nursing Home
Benátky nad Jizerou Nursing Home
Blansko Nursing Home
Bohuslavice House of Charity
Bratislava St. Ann´s House of Charity
Nursing Home ARCHA
Nursing Home Hestia
Nursing Home Při Krizi
Nursing Home Rusovská cesta
Nursing Home Smolnická
Nursing Home CHARITAS
Nursing Home Johanes
Brno Nursing Home
Nursing Home Maloměřice
Chrlice Institute of Social Care
Brusno Spa House
Budislav Nursing Home
Čeložnice Nursing Home
Červený Kostelec Hospice
České Budějovice Nursing Home
Nursing Home Máj
Cetechovice House of Charity
Detva Nursing Home
Dolný Kubín Nursing Home
Dubeč Nursing Home
Dudince Baths – Balneo
Spa House Rudín
Filakovo Nursing Home
Frýdek-Místek House of Charity
Nursing Home Školská
Fryšták Nursing Home
Havlíčkův Brod Nursing Home
Hlinsko Nursing Home
Hlučín Nursing Home
Nursing Home phase II
Hodonín Nursing Home
Nursing Home Bří Čapků
Nursing Home Lučina
Hontianske Moravce Nursing Home
Horní Bříza Institute of Social Care
Nursing Home
Hradec Králové Nursing Home object C
Nursing Home
Nursing Home additional building
Hranice na Moravě Nursing Home
Nursing Home – phase II
Nursing Home object SO 04
Hrochoť Nursing Home
Hronec Nursing Home
Jablonné Nursing Home
Jablonové Nursing Home
Jablunkov Nursing Home
Nursign Home phase II
Janova Lehota Nursing Home
Jíčín Nursing Home
Kadaň Nursing Home
Karviná Nursing Home
Klatovy Nursing Home
Košice Nursing Home Jižní třída
Kostelec na Hané Nursing Home
Kralovice Institute of Social Care
Krnov Nursing Home
Nursing Home Harmonie
Kroměříž The Convent of The Sisters of St.Cross
Nursing Home – Erbenovo waterfront
Nursing Home – Riegrovo
Nursing Home Vážany
Kyjov Nursing Home
Kyjovice Nursing Home
Kysucké Nové Mesto Nursing Home
Lanškroun Nursing Home
Lehnice Health Center Vitalita
Letovice Nursing Home
Liberec Nursing Home Františkov
Liptovský Mikuláš Nursing Home
Litoměřice House of Charity
Luhačovice Nursing Home
Mšeno Nursing Home
Mělník Nursing Home
Město Albrechtice House of Charity
Mitrov Nursing Home
Moravec House of Charity for clerical
Moravská Třebová Nursing Home
Moravské Budějovice House of Charity
Most Nursing Home Astra
Hospice
Mukařov House of Charity
Náměšť nad Oslavou Nursing Home
Nedašov Nursing Home
Netolice Nursing Home
Nezdenice Nursing Home
Nitra Nursing Home
Hospice
Nivnice House of Charity
Olomouc Congregation of Premonstrate Sisters
Opočno Nursing Home
Osoblaha Nursing Home
Ostrava Nursing Home Gajdošova
Hospice of St.Luke
House of Charity
Nursing Home Kamenec
Nursing Home Korýtko
DD Zábřeh
Otrokovice House of Charity
Palarikovo Hospice
Palárikovo Hospice
Písek Nursing Home Drvhole
Pavlovice Nursing Home
Petřvald Nursing Home
Pezinok Nursing Home
Piešťany Nursing Home
Plzeň Hospice of St. Joseph
Institute of Social Care Bolevec
Institute of Social Care Lochotín
Institute of Social Care Bory
Poprad Center of Social Services
Povážská Bystrica Hospice
Praha Institute of Social Care
Nursing Home Radotín
Nursing Home Kobylisy
Nursing Home Kobylisy A+B
Nursing Home Ďáblice
Hospice (Štrasburk)
Housing estate Institute of Social Care
Center of Social Care Vysočany
Nursing Home Sulická
Prachatice Nursing Home
Hospice of St. John
Pravětín House of Charity
Prešov Nursing Home
Proseč Nursing Home
Pruské Hospice
Radkova Lhota Nursing Home
Rajhrad Hospice
Rožďálovice Nursing Home
Rokytnice nad Jizeroou Nursing Home 2nd floor
Nursing Home 4th + 5th floor
Nursing Home 3rd floor
Rychnov nad Kněžnou Institute of Social Care
Sebedín Nursing Home
Semily Nursing Home
Skalica Nursing Home
Soběslav Nursing Home
Sousedovice Nursing Home
Starý Smokovec Specialized Medical Institute
Strážske Hospice
Světlá nad Sázavou Nursing Home
Pension for Seniors
Třebíč Nursing Home
Třinec Nursing Home
Tachov Nursing Home
Terezín Institute of Social Care
Institute of Social Care phase II
Trenčín Nursing Home Piaristická
Tučapy Nursing Home
Turnov Nursing Home
Újezdec Nursing Home
Unín Nursing Home
Ústí nad Orlicí Nursing Home
Úvaly Institute of Social Care
Všestudy Nursing Home
Nursing Home phase II
Valašská Bystřice House of Charity
Velká Bystřice House of Charity
Velké Bílovice Pension
Vratislavice Nursing Home
Želiechovce Hospice
Žíreč House of Charity of St. Joseph
Zlín Nursing Home Burešov
Znojmo Pension for Seniors

References RUS

Almetevsk Reconstruction of the Medical and Diagnostic Building of the LPU MCS OAO Tatneft
Astrachan Injury Center LOKOHELP
Beloyarsk Hospital
Dubna Medical Building for 190 beds of the Dubninsk City Hospital
Dimitrovgrad the Federal High-Tech Center for Medical Radiology
Gatchina Perinatal Centre
Irkutsk The Republican Clinical Hospital named after N. A. Semashko
Kolpino City Hospital No. 33 – Building of Surgical Ward
Kosmodrom Vostochnyj Policlinic
Kostroma The Building of the Oncological Center for the Placement of Linear Accelerators
Moscow Academician V. I. Kulakov Research Center
Moscow Town Hospital No. 55
Moscow The I. M. Sechenov Institute – phase I
Moscow Town Hospital No. 59
Moscow Moscow City Oncology Hospital No 62
Moscow Federal Medical Educational-Scientific Clinical Center named after P.V.Mandryk No. 2 of the Ministry of Defence of the Russia – military hospital (being implemented)
Moscow The Central Clinical Hospital of the Presidential Administration of the Russian Federation – pediatric ward
Moscow Moscow City Oncology Hospital No 62 – 2nd phase
Moscow Medsi Clinic, Otradnoe
Moscow Medsi Clinic, Krasnaya Presnya
Moscow ENC Dormitory
Moscow GKB No. 67 Perinatal Centre
Moscow GKB named after A.K. Eramishantseva
Moscow EMS Clinic, Durova str. 26
Moscow EMS Clinic, Orlovski str.
Moscow Clinical Hospital No. 1 in Otradnoye (4th floor), GK Medsi
Moscow Reconstruction of the Building of FGBU Endocrinological Research Center of the Ministry of Health of Russia
Moscow Central Clinical Hospital, Тherapeutic Building No. 5, Marshal Tymoshenko str.
Moscow Reconstruction of Dormitory Buildings No 1,2,3,4,5 in the Ward of Medical Rehabilitation on the territory of Otlichnik” FGBU
Nizhnevartovsk Central Hospital for 1100 beds
Penza Perinatal centre
Perm Federal Center for Cardiovascular Surgery
Petrozavodsk GBUZ RK Emergency Hospital
Pyshma Nursing Home
Saint Petersburg Town Hospital No. 15 – Department of Surgery
Saint Petersburg N.N.Petrov Research Institute of Oncology
Saint Petersburg City Clinical Oncology Center
Sertolovo Regional Children’s Hospital with a Health Centre
Smolensk Perinatal Centre
Shyolkovo Perinatal centre
Surgut School No. 32
Surgut Perinatal Centre
Tambov Perinatal Centre
Tobolsk Building of ABK-2 OOO Sibur Tobolsk
Tuchkovo District Hospital Tuchkovo
Tula Regional Children’s Hospital – Isolation and Diagnostic Ward
Tulun OGBUZ Tulun City Hospital Infection Ward
Tyumen Prenatal Care Center MiroMed
Troparevo-Nikulino Children’s Policlinic for 320 visits
Ulan-Ude Perinatal centre
Vladimir Nursing Home
Vladivostok FEFU Medical and Research Center
Voronezh The Road Clinical Hospital
Zheleznodorozhnyj Obstetrics and gynecology complex
Kaliningrad Regional Cancer Center of Kaliningrad Region
Moscow First Moscow State Medical University named after I.M. Sechenov (Sechenov University) – 2nd stage
Tula Regional Perinatal Center named after V.S. Gumilyovskaya
Orenburg Regional Children’s Clinical Hospital
Kazan Main building of the Children’s Hospital
Krasnodar Medical and diagnostic building on the Victory Square, 1
Cheboksary “Federal Center for Traumatology, Orthopedics and Endoprosthetics” of the Ministry of Health of the Russian Federation
Krasnoyarsk Reconstruction of the Department of Hematopoietic Stem Cell Transplantation with intensive care unit in KGBUZ KKKCOMD
Yakutsk Republican Cardiology Institute (II stage – Cardiovascular Center for 150 beds)
Reutov Health Centre for 750 visits per shift
Yaroslavl Surgеry Center Regional Clinical Oncology Hospital
Surgut School No. 3
Lipetsk “Construction of a Surgical Block with an Anesthesiology and Resuscitation Ward in the Regional Oncological Centre”
Moscow Plastic Surgery Clinic
Ulan-Ude Oncological Centre

Latvia

Jūrmala Rehabilitation Center

Ukraine

Kiev Oberig Clinic
Kiev Clinic of Cell Therapy
Kiev Adagio Hotel Pobedy

References KAZ

Aktau Medical Unit company KazAtomProm
Aktobe Medical Center “Daru”
Aktobe Medical Center – Department of Oncology
Almaty Clinic
Assa Health Center with Diagnostic Center
Astana Children’s Hospital of Infectious Diseases
Astana The National Center for Neurosurgery
Astana Republican Scientific Center of Emergency Medical Service – Department of Urology and Gynecology
Astana Clinic
Astana National scientific center for oncology and transplantation
Astana Rehabilitation and Diagnostic Center with Hotel
Lenger The Main District Hospital and Health Center
Petropavlovsk Cardiovascular Center
Shymkent Children´s Hospital
Shymkent Tuberculosis dispensary

References GEO

Batumi General Hospital
Gori The Military Hospital
Kutaisi Medical Center
Kutaisi General Hospital
Ortachala Medical Center
Poti Clinic
Sachkhere Clinic
Tbilisi Medical Center
Tbilisi LTD. Acad. Gr. Mukhadze center of hematology and transfusiology
Tbilisi New Hospitals

References Belarus

Bobruisk City Children’s Hospital
Borisov Construction of a Children’s Ward of Multidisciplinary Care, a Blood Transfusion Station and Reconstruction of a Surgical Ward for 300 beds – stage 1 (a Children’s Ward of Multidisciplinary Care)
Brest Reconstruction of the Kindergarten, Hospice
Brest Regional Clinical Hospital – Infectious Diseases Ward
Gomel The Republican Research Center for Radiation Medicine and Human Ecology – block of intensive chemotherapy
Lesnoj N.N. Alexandrov National Cancer Centre
Mogilev Reconstruction of the Maternity Hospital in the Mogilev City Emergency Hospital
Minsk Reconstruction of the Department of Neurology in the 5th City Clinical Hospital
Minsk Private Medical Center, Pobediteley Avenue
Minsk City Gynecological Hospital
Vitebsk Reconstruction of the Building No. 2 Vitebsk Regional Clinical Oncological Dispensary (2nd stage)
Zhdanovichi Republican Clinical Medical Center
Mogilev Construction of the Cardiosurgical Centre of the Health Care Institution “Mogilev Regional Hospital”

References Moldova

Chisinau Children’s Hospital Nо.1

References Uzbekistan

AKFA Medline Tashkent – video
Tashkent Medion Clinic
Tashkent Central Military Hospital
Tashkent Republican Research Centre of Emergency Medicine – Department of Cardiology, Тransplantology and Neurosurgery – Chilanzar District

References Poland

Katowice SAMODZIELNY PUBLICZNY SZPITAL KLINICZNY IM. A. MIELĘCKIEGO

References Turkmenistan

Ashgabat International Centre of Internal Diseases – 5th floor Nephrology Clinic
